DIN Norm Polyester Sand Filters With Collector
Polyester Sand Filters
Product Description

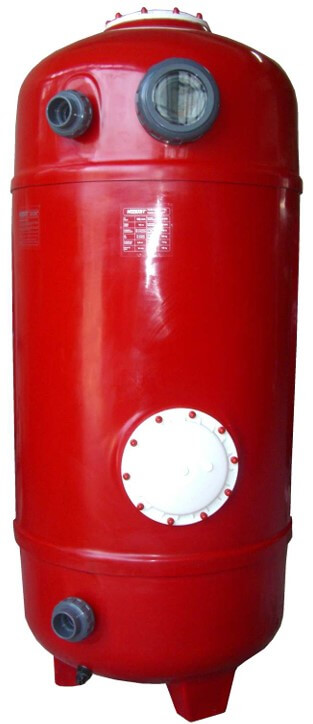

NOZBART DIN Norm Polyester Sand Filters With Collector
- It features a 1.2 m filter bed

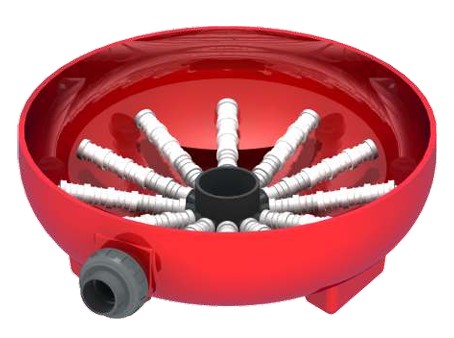

- Collector with laterals
- Filtraton velocity 40 m³/h/m²
- Using pressure maximum 2 BAR and Test pressure 4 BAR
- Sight Glasses included or not included
- Manometer and air valve are included
- Internal pipe and fittngs in U-PVC
- Gaskets in EPDM and all screw fittngs in stainless steel
{Ø620 - Ø760 - Ø 820 - Ø 920}
- DN 240 top closure dome and lateral manhole with bolt on cover
- The prices includes the multiport valve, do not include the sand
{Ø1050 - Ø1250 - Ø1400 - Ø1600 - Ø1800 - Ø2000 - Ø2350 }
- DN 400 top closure dome and lateral manhole with bolt on cover
- The filter prices do not include the multiport valve and the sand.
{Ø2000 - Ø2350}
- The filter prices include the double manometer equipment

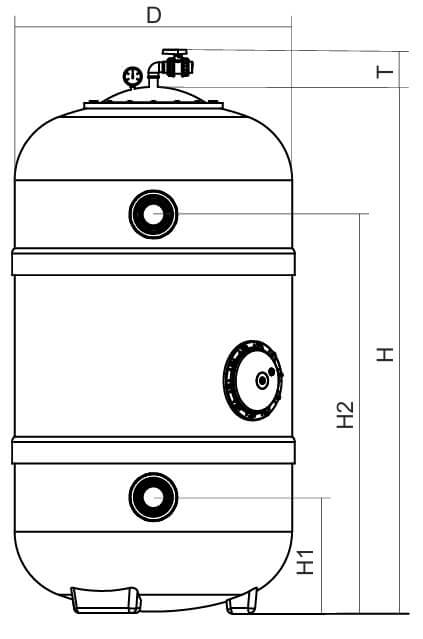

for Ø1050 - Ø1250 - Ø1400 - Ø1600 - Ø1800 - Ø2000 filters T = 12,5 cm
| Model (ØD) | FLOW 40 (m³/h | FLOW 30 (m³/h) | Sight Glass is not inclueded CODE | Sight Glass inclueded CODE | Anthracite (0,8-1,6 mm) (lt) | Fine sand (0,7-1,4 mm) (kg) | Medium sand (1,4-3 mm) (kg) | Gravel (3-5 mm) (kg) | H (cm) | H1 (cm) | H2 (cm) | Connection (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 620 mm | 12 | 9 | LMN-062 | LMG-062 | 180 | 175 | 25 | 75 | 165 | 27,5 | 146 | 50 |
| 760 mm | 18 | 14 | LMN-076 | LMG-076 | 275 | 225 | 50 | 125 | 192 | 32 | 149 | 63 |
| 820 mm | 21 | 16 | LMN-082 | LMG-082 | 300 | 250 | 75 | 150 | 198 | 36 | 163,5 | 63 |
| 920 mm | 26 | 20 | LMN-092 | LMG-092 | 400 | 300 | 100 | 200 | 200 | 41 | 148 | 63 |
| 1050 mm | 34 | 26 | LMN-105 | LMG-105 | 500 | 400 | 125 | 250 | 203 | 40,5 | 162 | 90 |
| 1250 mm | 48 | 36 | LMN-125 | LMG-125 | 725 | 650 | 150 | 300 | 211 | 33,5 | 160 | 90 |
| 1400 mm | 62 | 47 | LMN-140 | LMG-140 | 925 | 700 | 225 | 450 | 218 | 52 | 157 | 110 |
| 1600 mm | 80 | 60 | LMN-160 | LMG-160 | 1200 | 875 | 300 | 625 | 247 | 54 | 170 | 110 |
| 1800 mm | 101 | 76 | LMN-180 | LMG-180 | 1500 | 1100 | 400 | 800 | 255 | 55 | 175 | 160 |
| 2000 mm | 126 | 94 | LMN-200 | LMG-200 | 1850 | 1325 | 500 | 1000 | 255 | 54,5 | 187,5 | 160 |
| 2350 mm | 173 | 130 | LMN-235 | LMG-235 | 2600 | 1875 | 675 | 1350 | 260 | 27 | 192 | 160 |
