Fences For Swimming Pool
Fences For Swimming Pool
Brand
Product Code
Product Description

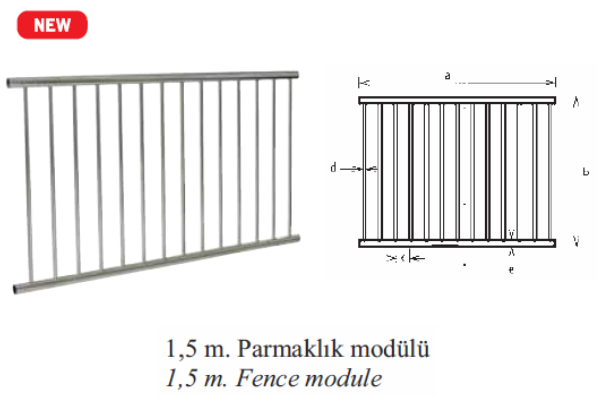

1,5 m. Fence Module
| Code | a | b | c | d | e | Kg | m³ |
| 87183030 | 1500 | 1143 | 100 | Ø18 | Ø43 | 45 | 1,753 |
*Measures in mm
Posts Fence Module
| Code | Des | a | b | c | Kg | m³ |
| 87183010 | 45° | 78+78 | 1143 | 1236 | 4,5 | 0,0625 |
| 87183011 | 90° | 104+104 | 1143 | 1236 | 5 | 0,0625 |
| 87183012 | 180° | 162 | 1143 | 1236 | 4,5 | 0,0625 |
| 87183013 | Final | 100 | 1143 | 1236 | 5 | 0,0625 |
*Measures in mm

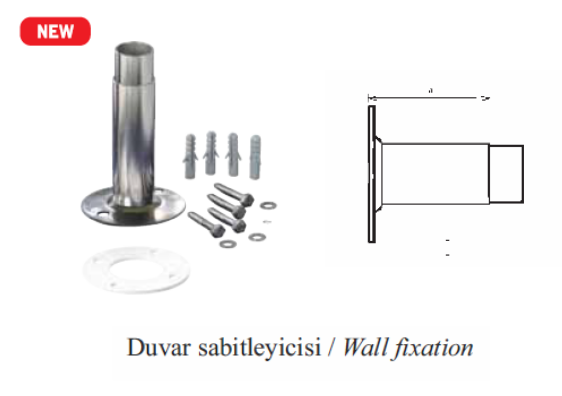

Wall Fixation
| Code | a | Kg | m³ | U |
| 87183020 | 73 | 2,5 | 0,0225 | x2 |
*Measures in mm
