Pump Panels
Product Description

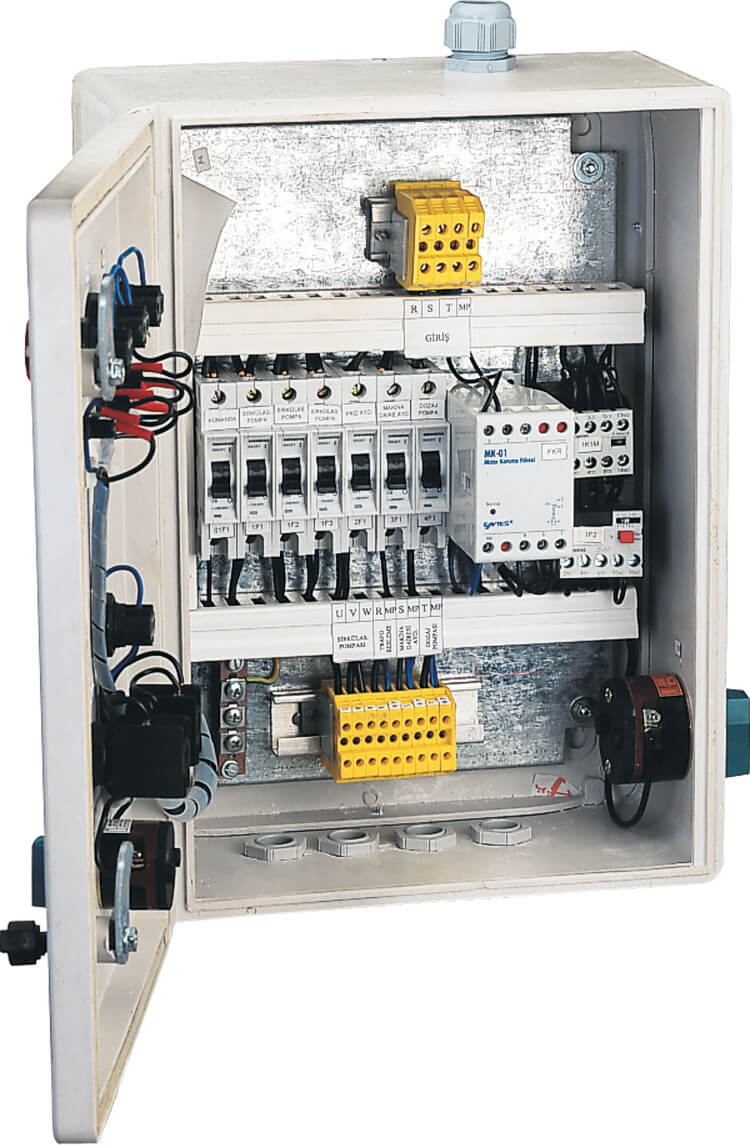

Nozbart® Pump Panels
Nozbart® custom pump panels are equipped with safety features such as thermal relay, phase protection, and residual current (RCD) protection. Panels with direct start are available for motors from 1/4 HP to 5.5 HP, while soft-start panels are available for motors from 7.5 HP to 60 HP, protecting motors from sudden current surges. Optional features such as external plug connections, dosing pump outputs, and lighting outputs allow seamless integration with your system.
The fiberglass-reinforced polyester enclosure provides high durability and long service life, ensuring safe and efficient operation.
For detailed information and custom requirements, please contact us.
DIRECT ON LINE (DOL)
| Motor Power | Single-Motor Code | Two-Motor Code | Three-Motor Code |
|---|---|---|---|
| 1/4 - 3 HP | PAN-0130 | PAN-0230 | PAN-0330 |
| 3,5 - 5,5 HP | PAN-0155 | PAN-0255 | PAN-0355 |
SOFT STARTER
| Motor Power | Single-Motor Code | Two-Motor Code | Three-Motor Code |
|---|---|---|---|
| 7,5 HP | PAN-0176 | PAN-0276 | PAN-0376 |
| 10 HP | PAN-0111 | PAN-0211 | PAN-0311 |
| 12,5 - 15 HP | PAN-0116 | PAN-0216 | PAN-0316 |
| 20 HP | PAN-0121 | PAN-0221 | PAN-0321 |
| 25 HP | PAN-0126 | PAN-0226 | PAN-0326 |
| 30 HP | PAN-0132 | PAN-0232 | PAN-0332 |
| 40 HP | PAN-0141 | PAN-0241 | PAN-0341 |
| 50 HP | PAN-0151 | PAN-0251 | PAN-0351 |
| 60 HP | PAN-0161 | PAN-0261 | PAN-0361 |
