Golden Ratio Series

Nozbart® Golden Ratio Series Pool Lights

Specifications:

• Surface-controlled special cold-welding technology
• IP68 electrical insulation – lifetime leak-proof guarantee
• Unique geometry for wider illumination near pool edges
• Fully sealed, insulated cable end – no water ingress even if cable is submerged
• Frameless design without visible screw holes – prevents dirt accumulation
• High-efficiency SMD LEDs – 90% energy saving vs filament bulbs
• Powerful illumination with low energy consumption
• For underwater use only, up to 5 m depth
• 2.5 m cable length included
• Automatic current control for long life
• Golden Ratio design for an elegant, classic pool appearance
• Single solution – no need to choose between surface-mounted or recessed

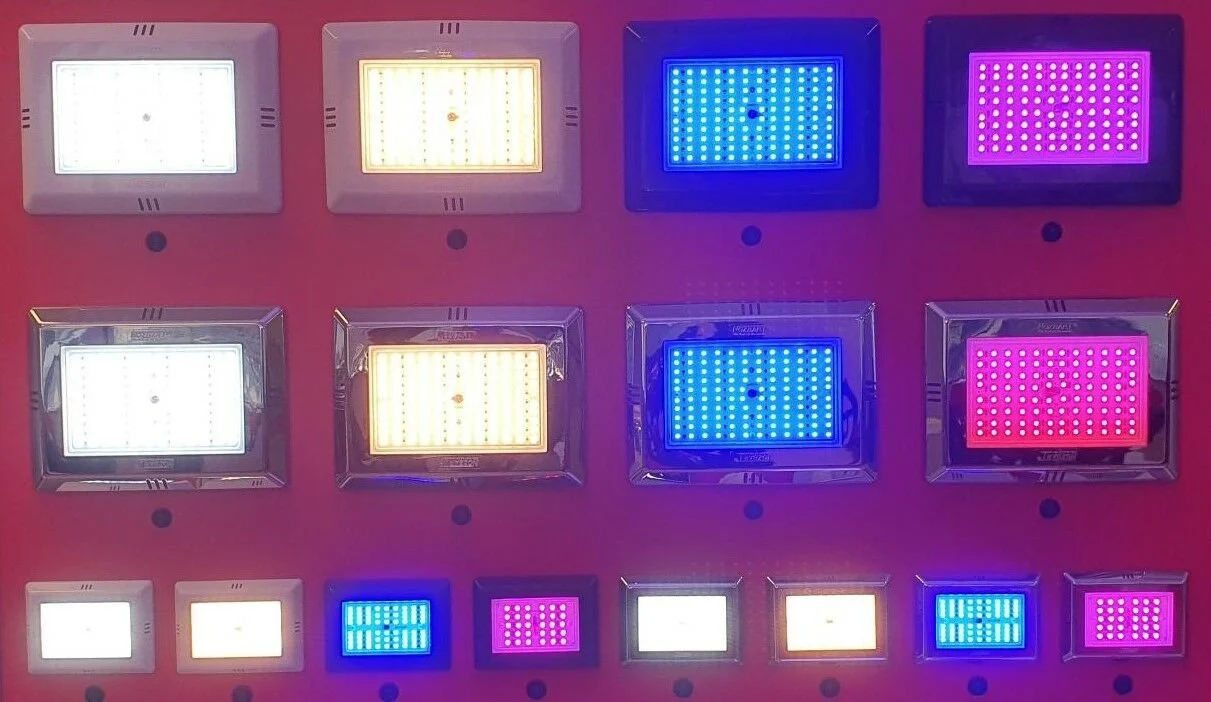

• Available in White, Warm White, Blue, and RGB (color-changing) models
• Optional special kits for cable routing and mounting for all pool types
• Suitable for sea water and geothermal water use
• 316 stainless-steel mounting hardware
• UV- and antioxidant-enhanced materials – impact-resistant and durable
• Models available for reinforced-concrete, liner, panel, and polyester pools

All lights used with the kit must be installed with a long frame.

For coated and stainless-steel products, your system must include a rust-protection device and a grounding device. The warranty is valid for two years provided that pool standards and regulations are followed.

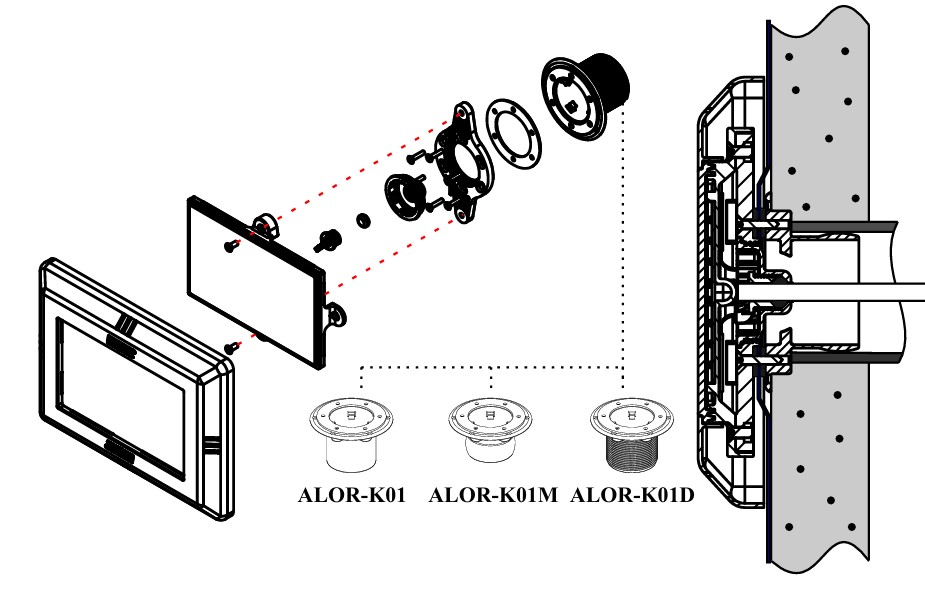

Golden Ratio Liner Kit

ALOR-K01 / ALOR-K01M / ALOR-K01D

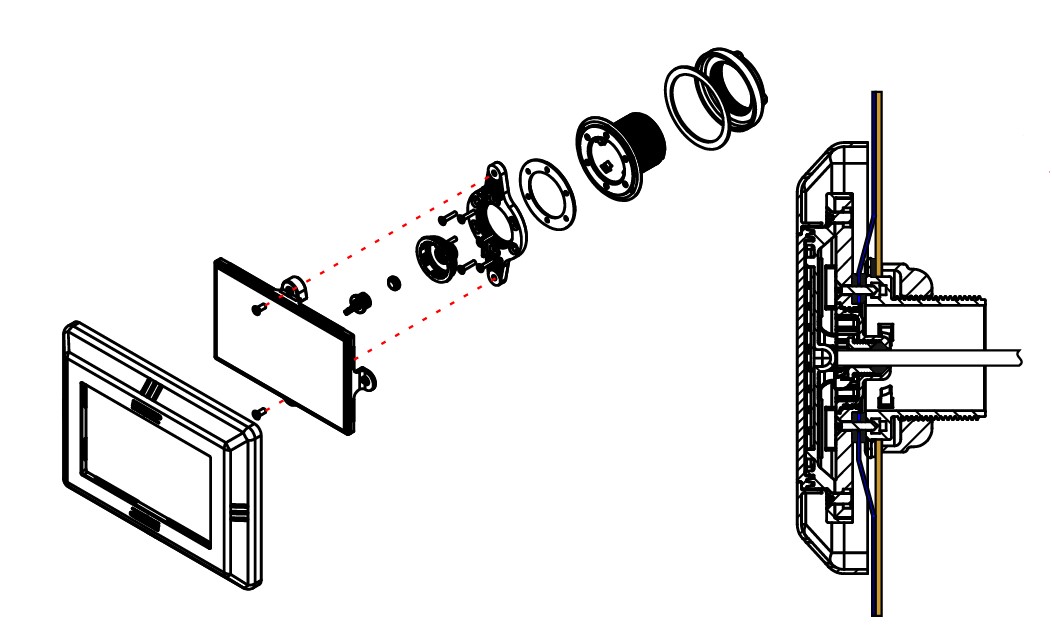

Golden Ratio Panel/Polyester Kit

ALOR-K02
