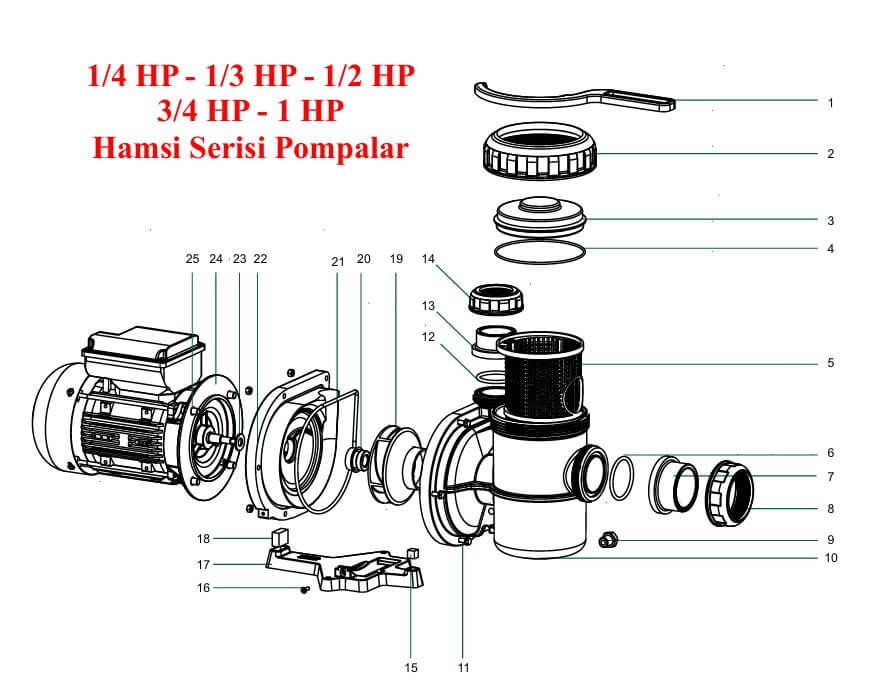

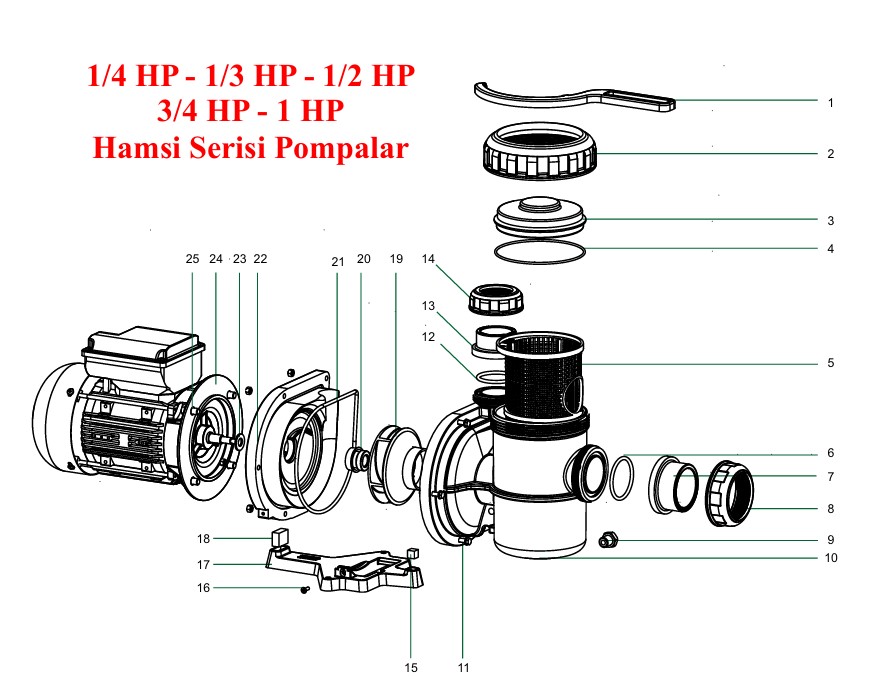

Hamsi Series Pump Spare Parts
Product Description
| Number | Name | 1/4 HP | 1/3 HP | 1/2 HP | 3/4 HP | 1 HP |
|---|---|---|---|---|---|---|
| 1 | Cover key | PMP025-01 | PMP025-01 | PMP025-01 | PMP025-01 | PMP025-01 |
| 2 | Strainer nut | PMP025-02 | PMP025-02 | PMP025-02 | PMP025-02 | PMP025-02 |
| 3 | Strainer coverı | PMP025-03 | PMP025-03 | PMP025-03 | PMP025-03 | PMP025-03 |
| 4 | Strainer cover o-ring | PMP025-04 | PMP025-04 | PMP025-04 | PMP025-04 | PMP025-04 |
| 5 | Basket | PMP025-05 | PMP025-05 | PMP025-05 | PMP025-05 | PMP025-05 |
| 6 | Suction collar o-ring | YVS-410 | YVS-410 | YVS-410 | YVS-410 | YVS-410 |
| 7 | Suction collar | PMP025-07 | PMP025-07 | PMP025-07 | PMP025-07 | PMP025-07 |
| 8 | Nut | PMP025-08 | PMP025-08 | PMP025-08 | PMP025-08 | PMP025-08 |
| 9 | Drain plug | PMP35-10 | PMP35-10 | PMP35-10 | PMP35-10 | PMP35-10 |
| 10 | Face plate | PMP025-10 | PMP025-10 | PMP025-10 | PMP025-10 | PMP025-10 |
| 11 | Strainer bolt | PMP025-11 | PMP025-11 | PMP025-11 | PMP025-11 | PMP025-11 |
| 12 | Discharge collar o-ring | PMP025-12 | PMP025-12 | PMP025-12 | PMP025-12 | PMP025-12 |
| 13 | Discharge collar | PMP025-13 | PMP025-13 | PMP025-13 | PMP025-13 | PMP025-13 |
| 14 | Nut | PMP025-14 | PMP025-14 | PMP025-14 | PMP025-14 | PMP025-14 |
| 15 | Mounting base rubber (Prefilter) | PMP025-15 | PMP025-15 | PMP025-15 | PMP025-15 | PMP025-15 |
| 16 | Mounting base connection bolts | PMP025-16 | PMP025-16 | PMP025-16 | PMP025-16 | PMP025-16 |
| 17 | Mounting base | PMP025-17 | PMP025-17 | PMP025-17 | PMP025-17 | PMP025-17 |
| 18 | Motor mounting base rubber (Motor) | PMP025-18 | PMP025-18 | PMP025-18 | PMP025-18 | PMP050-21 |
| 19 | Impeller | PMP025-19 | PMP026-19 | PMP027-19 | PMP028-19 | PMP029-19 |
| 20 | Mechanical seal | PMP025-20 | PMP025-20 | PMP025-20 | PMP025-20 | PMP025-20 |
| 21 | Body o-ring | PMP025-21 | PMP025-21 | PMP025-21 | PMP025-21 | PMP025-21 |
| 22 | Seal plate | PMP025-22 | PMP025-22 | PMP025-22 | PMP025-22 | PMP026-22 |
| 23 | Seal plate | PMP025-23 | PMP025-23 | PMP025-23 | PMP025-23 | PMP025-23 |
| 24 | Electric motor (Single Phase) | PMP025-24 | PMP026-24 | PMP027-24 | PMP028-24 | PMP029-24 |
