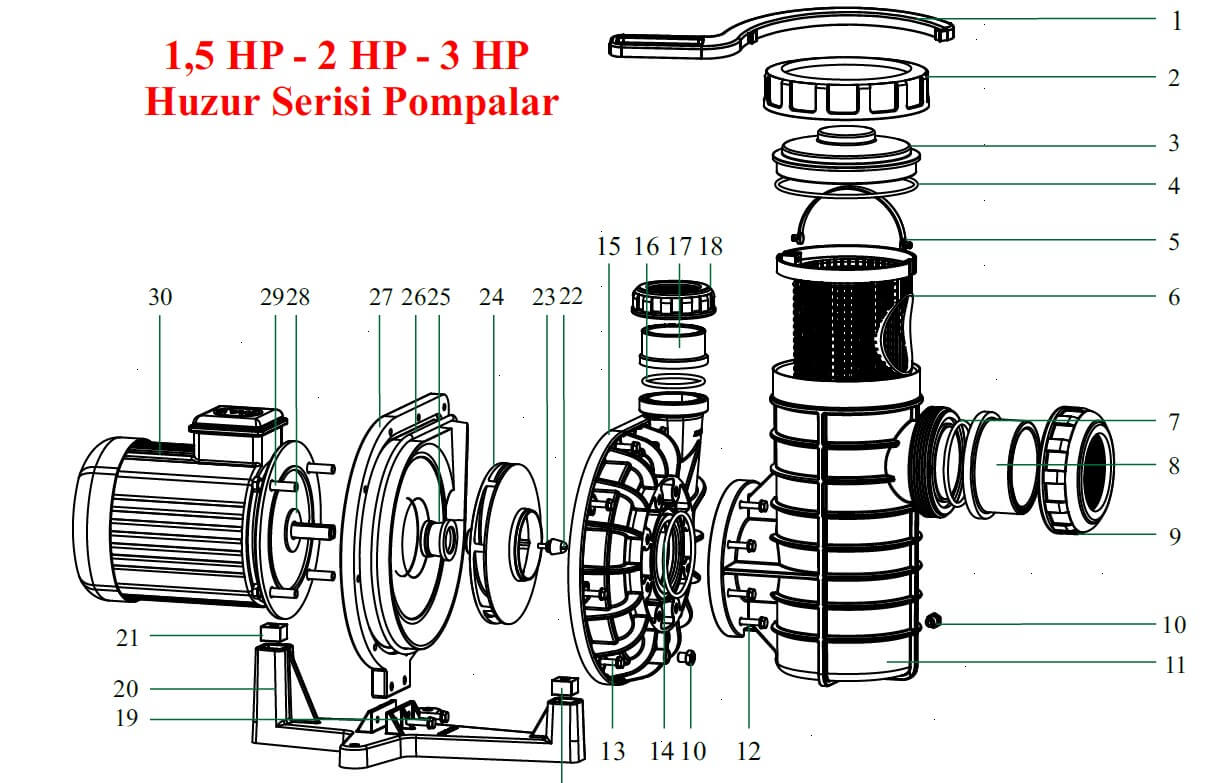

Huzur Series Pump Spare Parts
Product Description
| Number | Name | 1.5 HP | 2 HP | 3 HP |
|---|---|---|---|---|
| 1 | Cover key | YPS-201 | YPS-201 | YPS-201 |
| 2 | Strainer nut | YPS-202 | YPS-202 | YPS-202 |
| 3 | Strainer cover | PMP35-03 | PMP35-03 | PMP35-03 |
| 4 | Strainer cover | PMP35-04 | PMP35-04 | PMP35-04 |
| 5 | Strainer basket handle | PMP35-05 | PMP35-05 | PMP35-05 |
| 6 | Basket | PMP35-06 | PMP35-06 | PMP35-06 |
| 7 | Suction collar o-ring | PMP35-07 | PMP35-07 | PMP35-07 |
| 8 | Suction collar | FKL-090 | FKL-090 | FKL-090 |
| 9 | Nut | YVS-805 | YVS-805 | YVS-805 |
| 10 | Drain plug | PMP35-10 | PMP35-10 | PMP35-10 |
| 11 | Strainer housing | PMP35-11 | PMP15-11 | PMP15-11 |
| 12 | Strainer bolt | PMP35-12 | PMP15-12 | PMP15-12 |
| 13 | Face plate bolt | YPC-113 | YPC-113 | YPC-113 |
| 14 | Strainer o-ring | PMP35-07 | PMP35-07 | PMP35-07 |
| 15 | Face plate | PMP15-15 | PMP15-15 | PMP15-15 |
| 16 | Discharge collar o-ringi | YVS-709 | YVS-709 | YVS-709 |
| 17 | Discharge collar | PMP15-17 | PMP15-17 | PMP15-17 |
| 18 | Nut | PMP15-18 | PMP15-18 | PMP15-18 |
| 19 | Mounting base connection bolts | PMP15-19 | PMP15-19 | PMP15-19 |
| 20 | Mounting base | PMP15-20 | PMP15-20 | PMP15-20 |
| 21 | Mounting base rubber (Motor side) | PMP15-31 | PMP35-21 | PMP35-21 |
| 22 | Impeller screw | YPS-020 | YPS-020 | YPS-020 |
| 23 | Impeller o-ring | PMP15-23 | PMP15-23 | PMP15-23 |
| 24 | Impeller | PMP15-24 | PMP20-24 | PMP30-24 |
| 25 | Mechanical seal | PMP35-27 | PMP35-27 | PMP35-27 |
| 26 | Body o-ring | PMP15-26 | PMP15-26 | PMP15-26 |
| 27 | Seal plate | PMP15-27 | PMP15-27 | PMP30-27 |
| 28 | Slinger | MP35-30 | MP35-30 | MP35-30 |
| 29 | Electric Motor (Single Phase) | PMP15-29M | PMP20-29M | PMP30-29M |
| 29 | Electric Motor (Three Phase) | PMP15-29T | PMP20-29T | PMP30-29T |
| 30 | Motor bolt | PMP15-30 | PMP15-30 | YPC-130 |
| 31 | Mounting base rubber (Prefilter side) | YPC-121 | YPC-121 | YPC-121 |
