Mini Işıl Series

Nozbart® Mini Işıl Series Pool Lights

Technical Specifications:

• Lifetime leak-proof guarantee with surface-controlled special cold-welding technology and IP68 electrical insulation.

• Special geometry provides wider illumination suitable for the pool-edge surface.

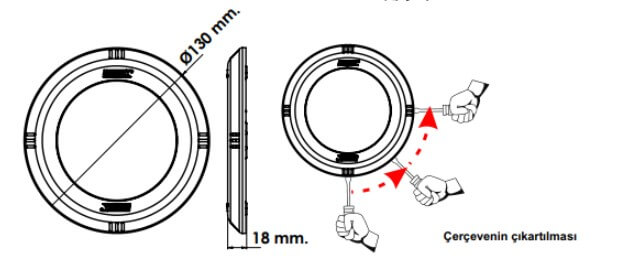

• With its 18 mm thickness, it is the world’s thinnest and most aesthetic pool lighting fixture.

• The cable end inside the fixture is completely sealed and insulated; even if the cable remains in water, no water can enter the fixture.

• Unique frame design with no screw holes that spoil the appearance or collect dirt.

• Equipped with high-efficiency SMD LEDs, delivering strong illumination while saving 90% energy compared to filament bulbs.

• Available in various kit options.

• Cable length: 1 meter.

• Long-lasting with automatic current control.

• For underwater use only; suitable for use at depths of up to 5 meters.

• Features a golden-ratio design at the peak of aesthetics, enhancing the classic pool appearance.

• Provides an easy and definitive solution for pool lighting without the need for surface-mounted or recessed options.

• Available in white, daylight, and blue colors, as well as an RGB model for full color and light effects.

• Optional special kits provide cable routing and fastening solutions for all types of pools and pool steps.

• Suitable for use in seawater and geothermal water; all connection components are stainless steel.

• Made from durable materials, UV- and antioxidant-treated, impact-resistant, and long-lasting.

All lights used with the kit must use the long frame.

For coated and stainless-steel products, a rust-protection and grounding device must be installed in your system. Warranty is 2 years when pool standards and regulations are followed.

Use only with direct current (DC) underwater.

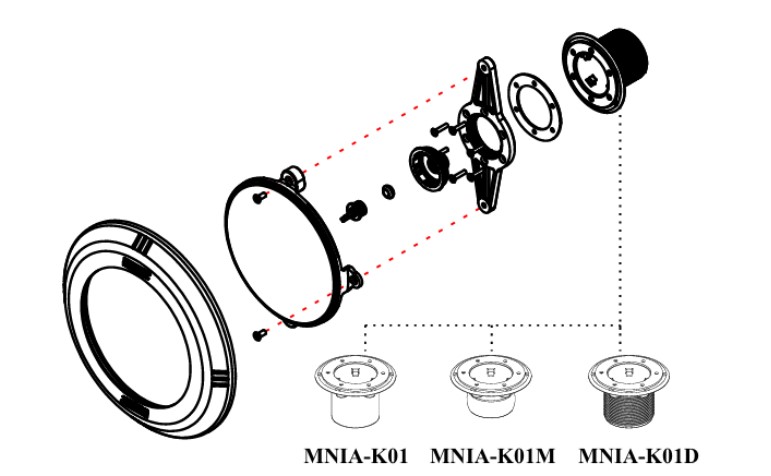

Mini Işıl Series Liner Kit

MNIA-K01 / MNIA-K01M / MNIA-K01D

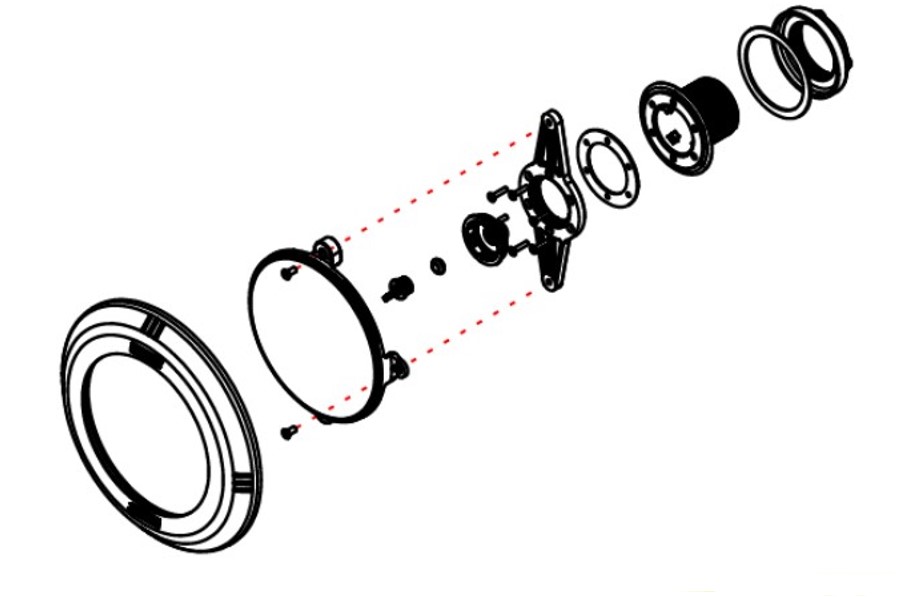

Mini Işıl Series Panel/Polyester Kit

MNIA-K02
