Plastic Sand Filter (PE) Top Mounting
TOP MOUNTED PLASTIC SAND FILTER (PE)
Product Description
NOZBART Top Mounted Plastic Sand Filter (PE)
- Healthy filtration with a special collector system
- Maximum operating pressure: 2 BAR / Test pressure: 4 BAR
- Available models with or without sight glass
- Equipped with air release valve and manometer
- EPDM gaskets and fully stainless-steel bolts
- EPDM contalar ve tümüyle paslanmaz civatalar
- Large top cover with DN 240 inlet diameter
- Prices include six-way valve, exclude filter media (sand)
- Filtration rate: 50 m³/h

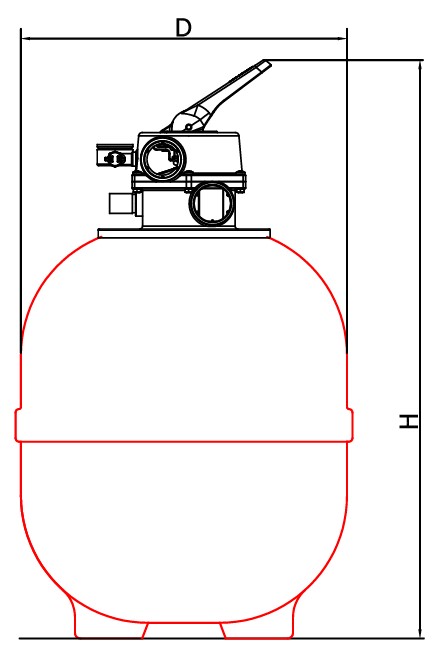

| Model (ØD) | 50 (m³/h) | 40 (m³/h) | 30 (m³/h) | Code | Fine Sand (kg) | Gravel (kg) | H (cm) | Connection (mm) |
|---|---|---|---|---|---|---|---|---|
| 400 mm | 6 | 5 | 4 | FPE-041 | 30 | 15 | 65 | 50 |
| 500 mm | 10 | 8 | 6 | FPE-051 | 60 | 30 | 66 | 50 |
| 620 mm | 15 | 12 | 9 | FPE-063 | 90 | 50 | 92 | 50 |
| 760 mm | 22 | 18 | 14 | FPE-077 | 180 | 125 | 109 | 63 |
| 920 mm | 33 | 26 | 20 | FPE-093 | 330 | 200 | 129 | 63 |
