Polyester Floor Inlet and Suction with Safety Cage and Brass Insert (Chrome)

NOZBART® Polyester Floor Inlet and Suction with Safety Cage (Chrome)

Nozbart nozzles are manufactured from high-quality, durable plastic materials and offer a wide range of over 400 product variations to meet diverse needs. Distinguished by material quality and production precision, Nozbart nozzles deliver a user experience that exceeds expectations in both performance and variety.

Key Features:

• A wide range of nozzle options compatible with all types of pools, including concrete, liner, panel, and polyester.

• The ball is secured by tightening the locking ring with a wrench. Unlike other models on the market, the ball does not fall into the pool when the nozzle cover is removed by swimmers.

• All internal components of the nozzle body are fully compatible with one another and can be easily configured, depending on your needs, as:
  Side-feed nozzles with ball in various flow rates
  Bottom-feed nozzles with adjustable flow
  Side-outlet feed nozzles
  Fixed-flow feed/suction nozzles with protective grill
  Vacuum nozzles
• Side-feed nozzles with ball in various flow rates

• Bottom-feed nozzles with adjustable flow

• Side-outlet feed nozzles

• Fixed-flow feed/suction nozzles with protective grill

• Vacuum nozzles

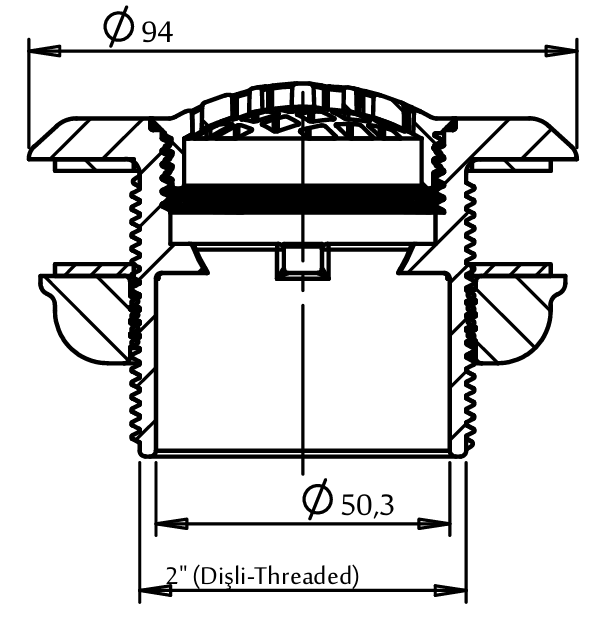

• Solvent-weld models can be glued into 63 mm U-PVC (PN10) pipes.

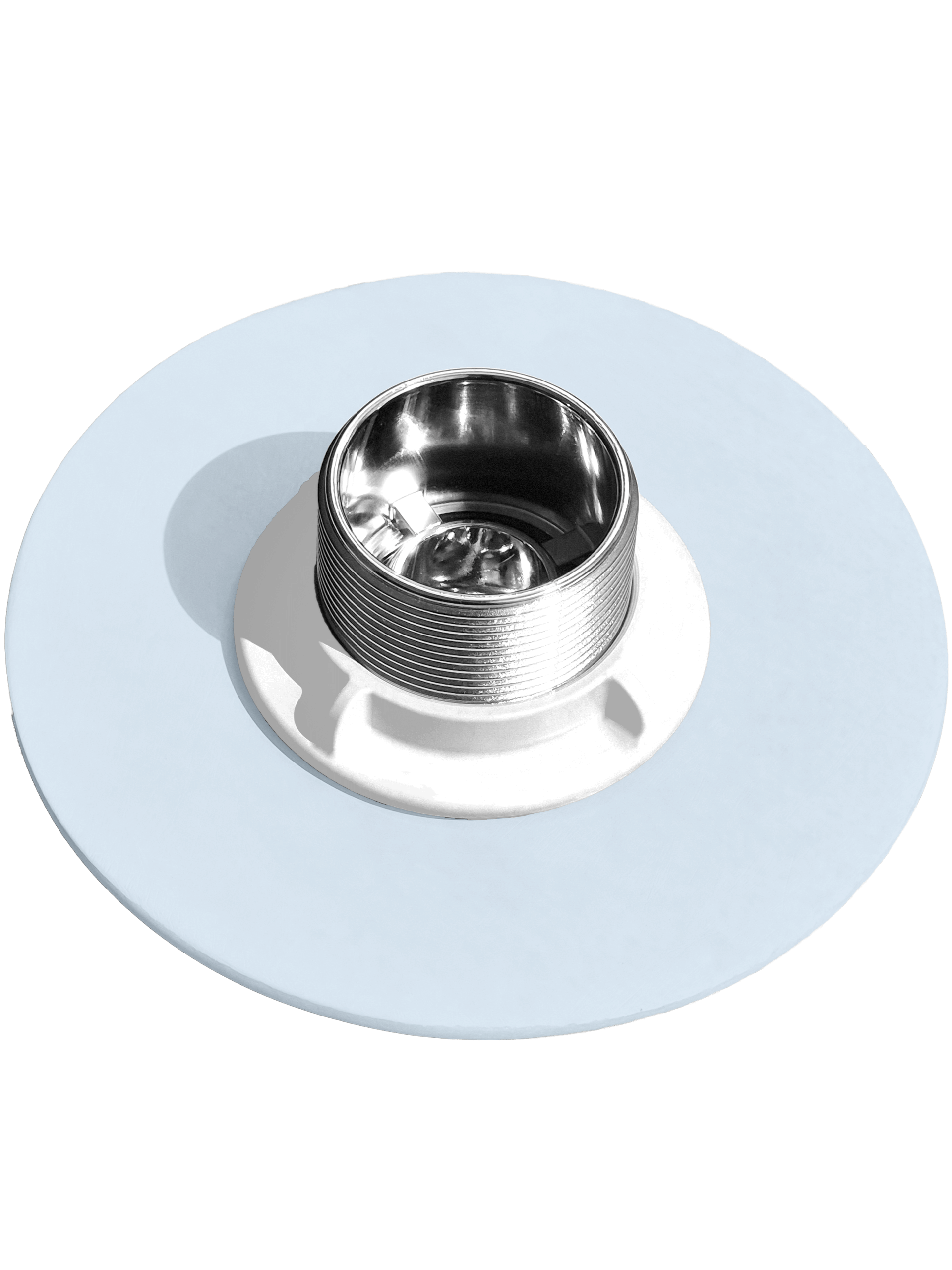

• Threaded models are compatible with 2” threaded pipes. All models allow insertion of 50 mm U-PVC pipes inside.


• Articulated models feature a full-sphere design on the glued side, enabling error-free installation with up to 10° of pipe misalignment.

• Ball-type feed nozzles are specially manufactured in 2.2 – 4.5 – 7 m³/h flow rates. Unlike other models in the market, these nozzles do not require additional labor or tools to modify the ball. They are ready to use at the desired flow rate.

• All nozzles are made from original ABS material with UV and antioxidant additives for enhanced durability.

• Ball-type (with safety grill) and bottom-feed nozzles comply with EN 13451-3.

• Finger jam is secure, and the openings are smaller than 8 mm.

• The special design of the bottom-feed nozzles promotes water circulation along the pool floor, lifting dirt particles to the surface where they can be removed via overflow channels or skimmers, helping keep the pool floor clean.

• Adjustable flow nozzles allow for precise flow regulation. Once set, the top screw is tightened to fix the position, ensuring stable performance and perfect pool balance.

Model:

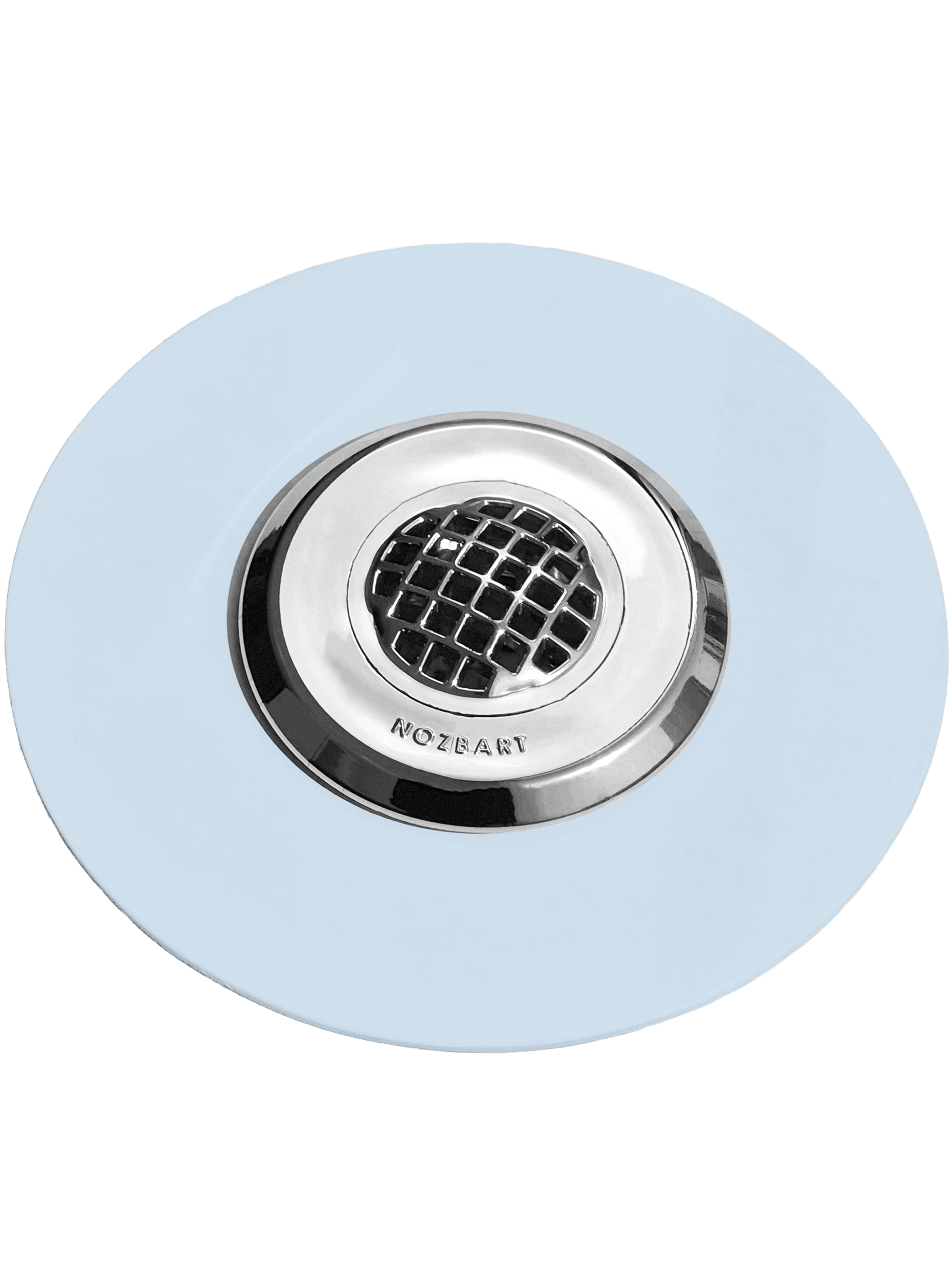

Polyester Floor Inlet and Suction with Safety Cage and Brass Insert (Chrome)

• Nozzles are manufactured from original ABS material.

• Formulated with UV and antioxidant additives for long-lasting durability.

• Ball-type (with safety cage) and bottom-feed nozzles comply with EN 13451-3.

• Finger entrapment safe — all openings are smaller than 8 mm.

• Solvent-weld models are suitable for insertion into 63 mm U-PVC pipes (PN10 / 10 Bar)
