PPRC Double-Acting Pneumatic Actuated Butterfly Valves

Product Description

Nozbart® PPRC Double-Acting Pneumatic Actuated Butterfly Valves

Designed with a highly chemical-resistant PPRC body and disc, these valves provide both opening and closing operations via a double-acting pneumatic actuator using air pressure. This allows for more precise, reliable, and fast control in process lines, making it an ideal solution especially for automation systems.

Key Features:

  • Durable and lightweight PPRC body and disc
  • Double-acting pneumatic actuator (opens and closes with air)
  • EPDM gasketed leak-proof structure
  • High resistance to corrosion and chemicals
  • Fast and precise control capability
  • Compatible with standard ISO mounting flanges
  • Easy installation and maintenance

Applications:

  • Chemical process pipelines
  • Water and wastewater treatment plants
  • Swimming pool and pool treatment systems
  • Industrial liquid transfer and automation lines
  • Liquid transfer systems requiring control and automation

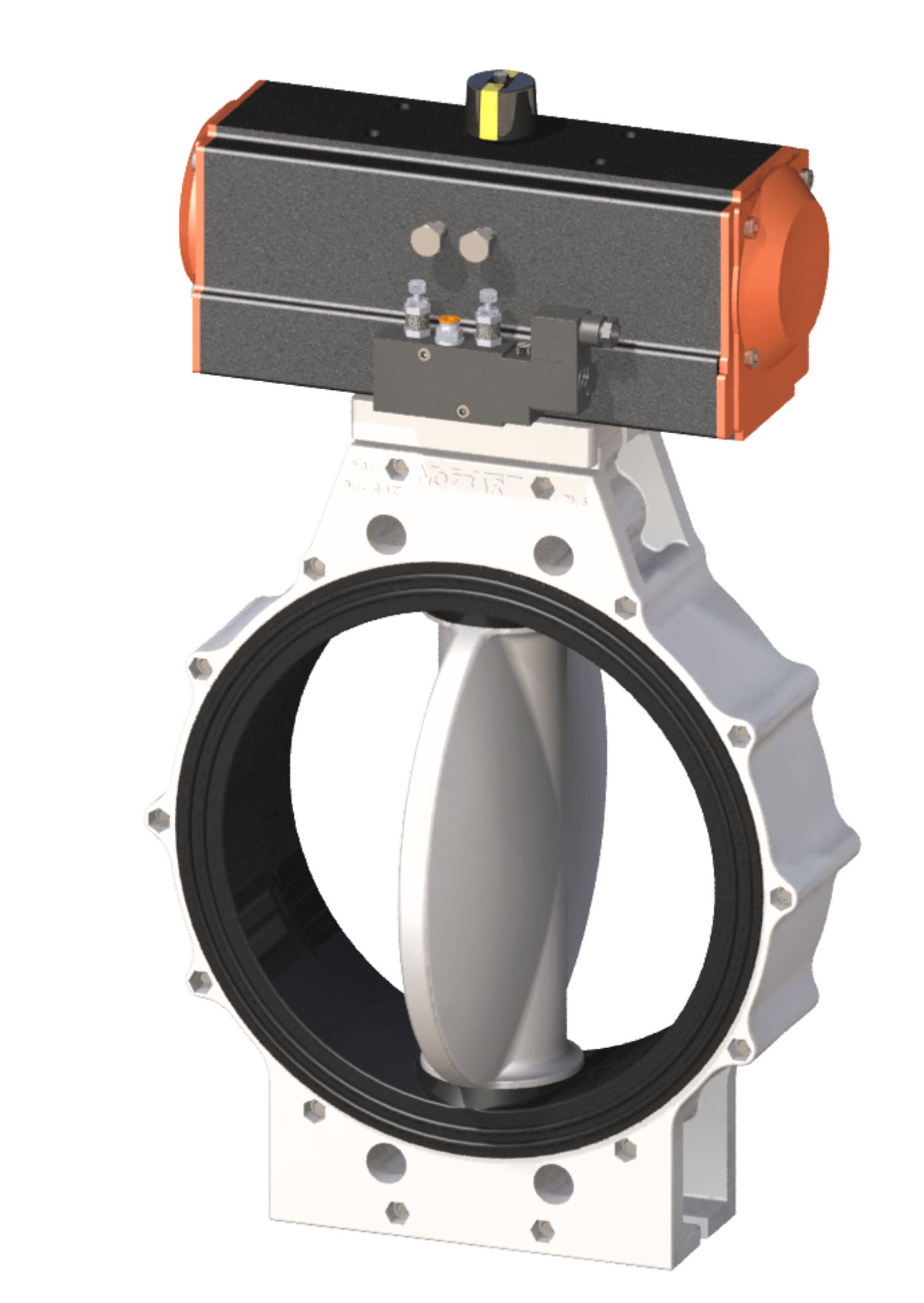

NAKED

Color selection: In the code section indicated by (...), insert one of the letters (B-G-M-Y).
B = White, G = Gray, M = Blue, Y = Green

DN (mm)NPS (Inch)Code
ISO / DIN / ENBS / ANSI / ASTM
502"DİM...-069
652 1/2"DİM...-081
803"DİM...-096
1004"DİM...-116
1254 1/2"DİM...-131 / DİM...-146
1506"DİM...-166
2007"DİM...-206 / DİM...-231
2509"DİM...-256 / DİM...-286
30012"DİM...-321

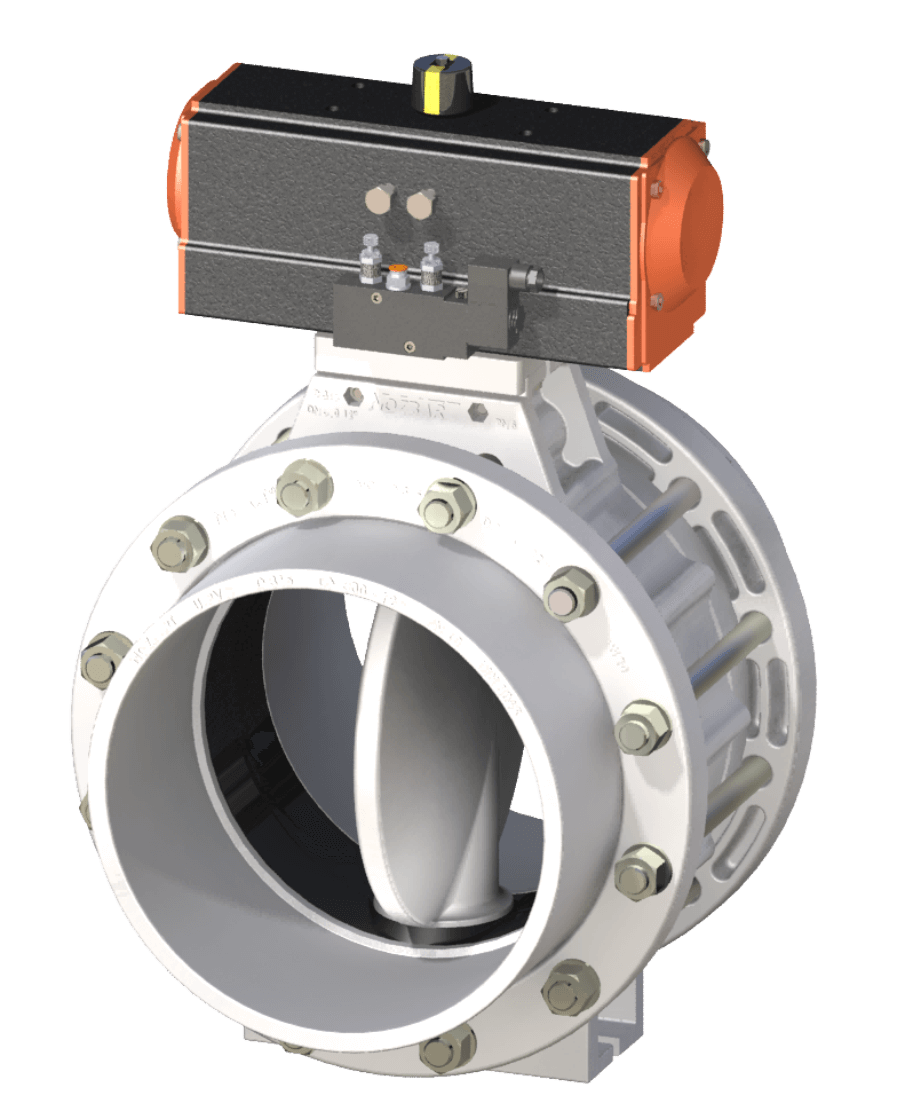

COMPLETE

Color selection: In the code section indicated by (...), insert one of the letters (B-G-M-Y).
B = White, G = Gray, M = Blue, Y = Green

DN (mm)D (Metrik)NPS (Inch)Code
ISO / DIN / ENISO / DIN / ENBS / ANSI / ASTM
5063 mm2"DİM...-070
6575 mm2 1/2"DİM...-082
8090 mm3"DİM...-097
100110 mm4"DİM...-117
125125 mm-DİM...-132
125140 mm5"DİM...-147
150160 mm6"DİM...-167
200200 mm7"DİM...-207
200225 mm8"DİM...-232
250250 mm9"DİM...-257
250280 mm10"DİM...-287
300315 mm12"DİM...-322
