PPRC Single Male Threaded Unions
Product Description

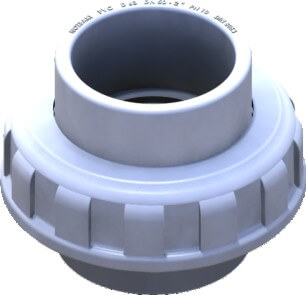

NOZBART® PPRC Single Male Threaded Unions
- O-Ring: EPDM or Viton®
- Available in full-bore sizes from 20 mm (1/2”) to 110 mm (4”), in both Metric and Imperial standards.
- Designed for easy and convenient installation.
- Made entirely from thermoplastic materials for corrosion-free, reliable operation.
- Offers excellent resistance to environmental conditions, chemicals, and mechanical stress.
- Ideal for industrial applications, water treatment systems, and swimming pools.
- Compatible with valves and check valves.

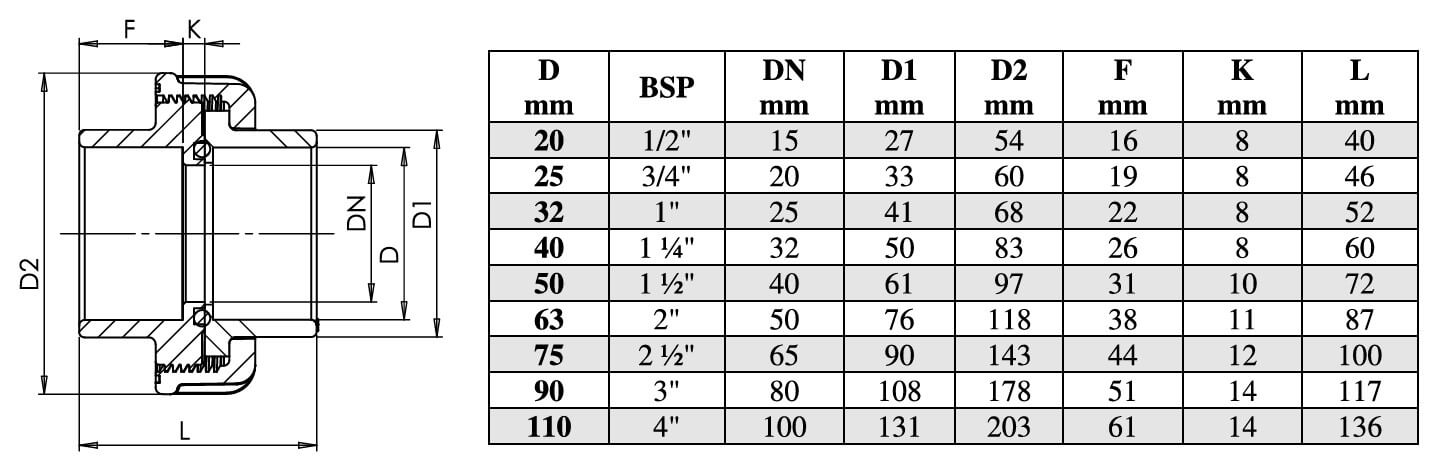

| D (mm) | D (inch) | DN (mm) | PN (bar) | White Code | Green Code | Gold Code | Blue Code |
|---|---|---|---|---|---|---|---|
| 20 | 1/2" | 15 | 16 | RPPB-021 | RPPY-021 | RPPG-021 | RPPM-021 |
| 25 | 3/4" | 20 | 16 | RPPB-026 | RPPY-026 | RPPG-026 | RPPM-026 |
| 32 | 1" | 25 | 16 | RPPB-033 | RPPY-033 | RPPG-033 | RPPM-033 |
| 40 | 1 1/4" | 32 | 16 | RPPB-041 | RPPY-041 | RPPG-041 | RPPM-041 |
| 50 | 1 1/2" | 40 | 16 | RPPB-051 | RPPY-051 | RPPG-051 | RPPM-051 |
| 63 | 2" | 50 | 16 | RPPB-064 | RPPY-064 | RPPG-064 | RPPM-064 |
| 75 | 2 1/2" | 65 | 10 | RPPB-076 | RPPY-076 | RPPG-076 | RPPM-076 |
| 90 | 3" | 80 | 10 | RPPB-091 | RPPY-091 | RPPG-091 | RPPM-091 |
| 110 | 4" | 100 | 10 | RPPB-111 | RPPY-111 | RPPG-111 | RPPM-111 |

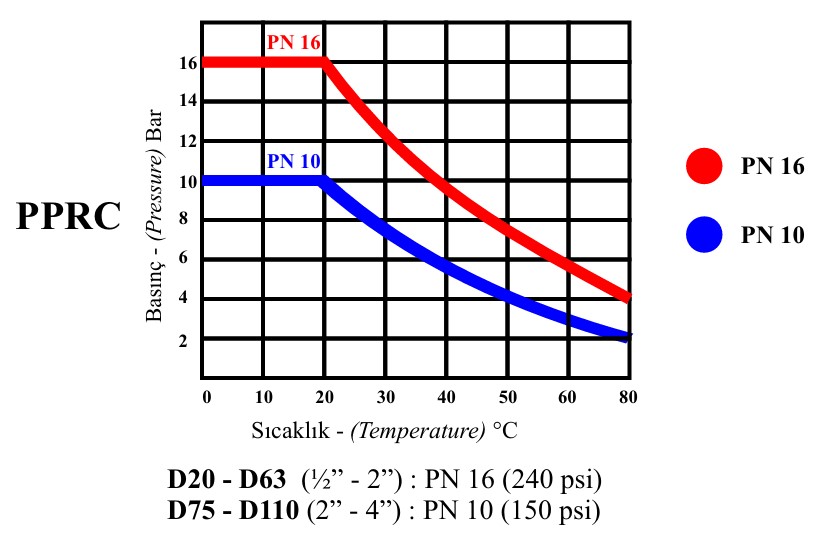

Temperature – Operating Pressure Diagram
Nut Tightening Torque
| 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 63 mm | 75 mm | 90 mm | 110 mm |
| 4,5 Nm | 5,5 Nm | 6 Nm | 13 Nm | 18 Nm | 45 Nm | 60 Nm | 73 Nm | 88 Nm |
