Spring Check Valves Spare Parts
Product Description
- The codes are for U-PVC; for PPRC, they must be specified together with the color.

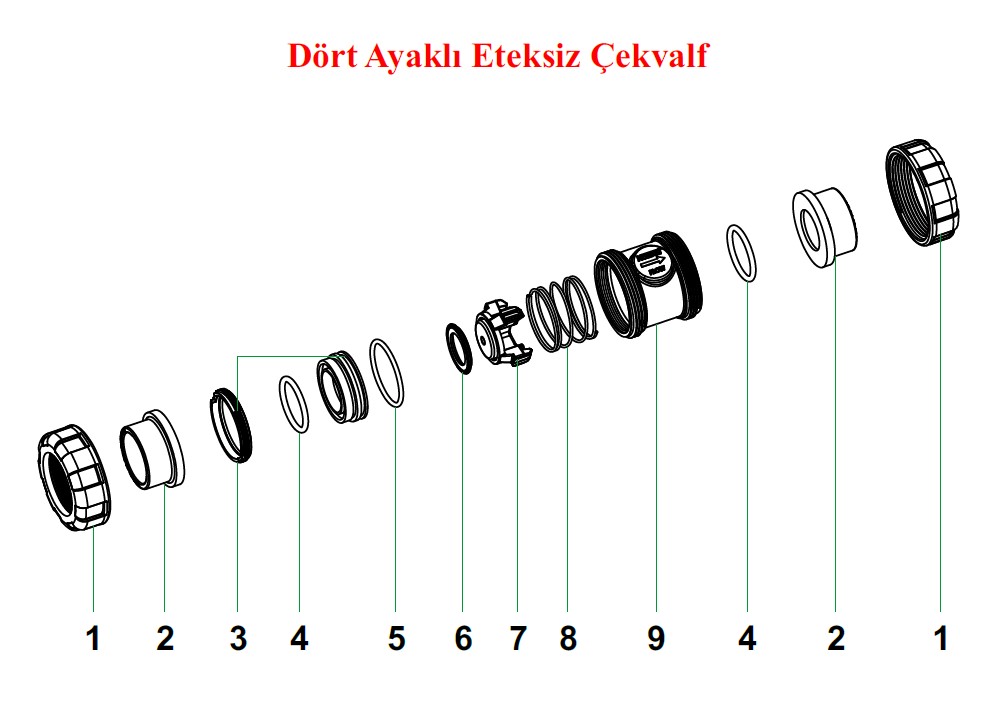

| Number | Name | 1/2" - 20 mm | 3/4" - 25 mm | 1" - 32 mm | 1 1/4" - 40 mm |
| 1 | Nut | YVS-105 | YVS-205 | YVS-305 | YVS-405 |
| 2 | Pipe Connection(solvent) | FKL-020 | FKL-025 | FKL-032 | FKL-040 |
| 2 | Pipe Connection(threaded) | YVS-104D | YVS-204D | YVD-304D | YVS-404D |
| 3 | Stopper | ÇKV-103 | ÇKV-203 | ÇKV-303 | ÇKV-403 |
| 4 | Pipe Connection o-ring | YVS-109 | YVS-209 | YVS-309 | YVS-409 |
| 5 | Body O-ring | YVS-110 | YVS-210 | YVS-310 | YVS-410 |
| 6 | Valve O-ring | ÇKV-106 | ÇKV-206 | ÇKV-306 | ÇKV-406 |
| 7 | Valve | ÇKV-107 | ÇKV-207 | ÇKV-307 | ÇKV-407 |
| 8 | Return Spring | ÇKV-108 | ÇKV-208 | ÇKV-308 | ÇKV-408 |
| 9 | Body | ÇKV-109 | ÇKV-209 | ÇKV-309 | ÇKV-409 |
| Number | Name | 1 1/2" - 50 mm | 2" - 63 mm | 2 1/2" - 75 mm | 3" - 90 mm | 4" - 110 mm |
| 1 | Nut | YVS-605 | YVS-605 | YVS-705 | YVS-805 | YVS-905 |
| 2 | Pipe Connection(solvent) | FKL-050 | FKL-063 | FKL-075 | FKL-090 | FKL-110 |
| 2 | Pipe Connection(threaded) | YVS-504D | YVS-604D | YVD-704D | YVS-804D | YVS-904D |
| 3 | Stopper | ÇKV-503 | ÇKV-603 | ÇKV-703 | ÇKV-803 | ÇKV-903 |
| 4 | Pipe Connection o-ring | YVS-509 | YVS-609 | YVS-709 | YVS-809 | YVS-909 |
| 5 | Body O-ring | YVS-510 | YVS-610 | YVS-710 | YVS-810 | YVS-910 |
| 6 | Valve O-ring | ÇKV-506 | ÇKV-606 | ÇKV-706 | ÇKV-806 | ÇKV-906 |
| 7 | Valve | ÇKV-507 | ÇKV-607 | ÇKV-707 | ÇKV-807 | ÇKV-907 |
| 8 | Return Spring | ÇKV-508 | ÇKV-608 | ÇKV-708 | ÇKV-808 | ÇKV-908 |
| 9 | Body | ÇKV-509 | ÇKV-609 | ÇKV-709 | ÇKV-809 | ÇKV-909 |
