Super Tufan Series (7,5 - 12,5 HP)
Product Description

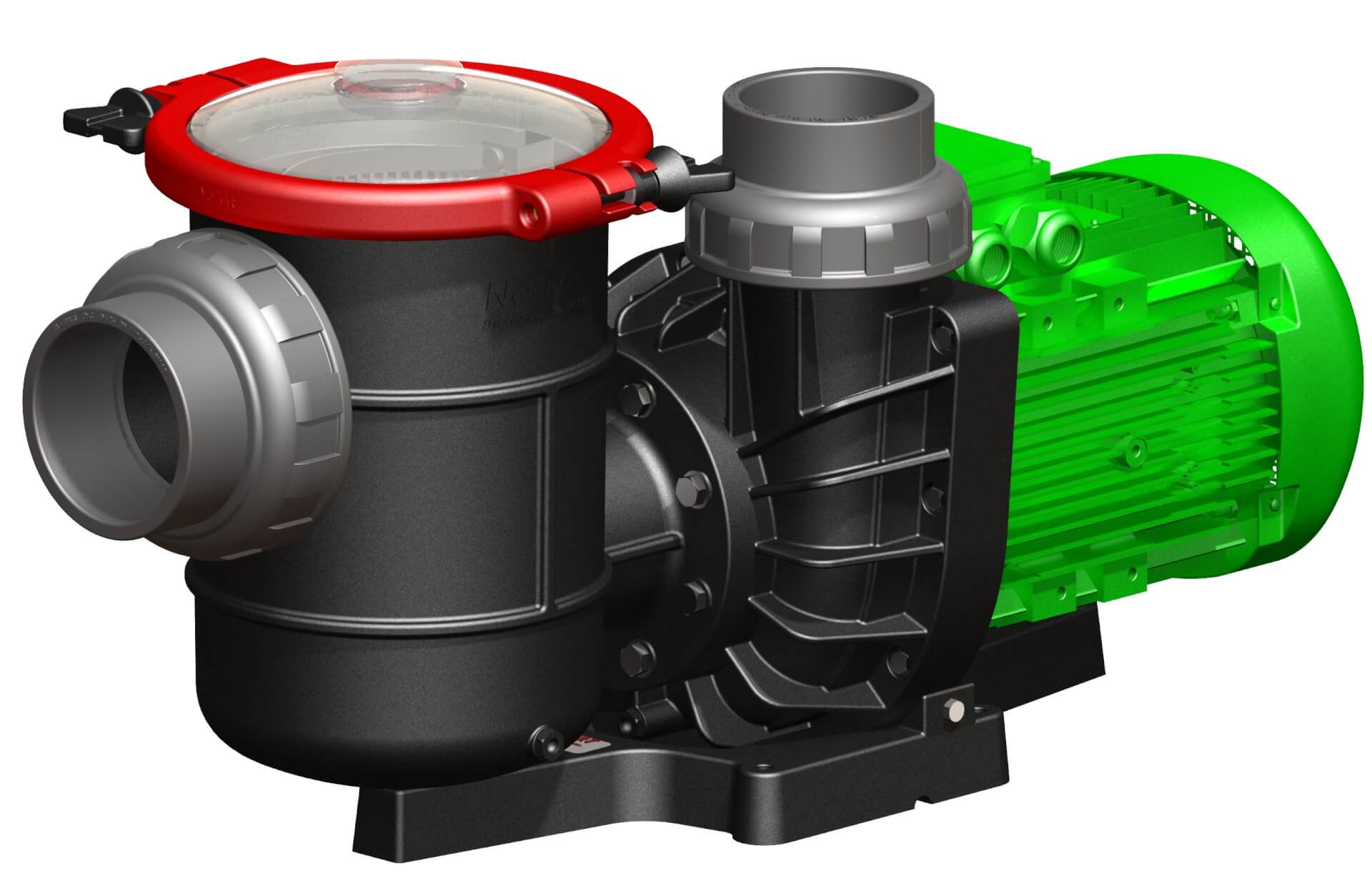

Nozbart® Super Tufan Series Pumps
Excellent Efficiency, Long Life, Quiet Operation
Nozbart® Super Tufan Series pumps are engineering marvels that stand out for their high efficiency, durable construction, and quiet operation. This series delivers an unprecedented hydraulic efficiency of up to 80%, making it an ideal solution for industrial and commercial applications. Equipped with IE3 high-efficiency motors, IP55 protection, F-class insulated asynchronous motors, and thermoplastic volute casing, these pumps combine energy savings with long-lasting, reliable performance.
Key Features
- Outstanding hydraulic efficiency for exceptional energy savings
- IE3 high-efficiency motors with IP55 protection for low energy consumption and high safety
- F-class insulated motors for superior performance and durability
- Lightweight, durable design for extended motor and pump life with vibration-free operation
- High-performance large front filter with eccentric strainer, maintaining operation even when half clogged
- Transparent, high-strength cover for easy filter inspection
- High-quality fiberglass-reinforced thermoplastic construction for superior corrosion resistance
- Drain plug for easy draining and freeze protection
Applications
- Swimming pools
- Seawater circulation systems
- General fluid transfer and pumping applications
- Industrial water treatment and filtration systems
- Chemical transfer and other demanding conditions
WITH PREFILTER
| HP | Flow (9 mWC) | Sound Level at Max. Efficiency | Three-Phase Code |
|---|---|---|---|
| 7,5 | 125 m³/h | 74 dB | PTF-075S |
| 10 | 150 m³/h | 75 dB | PTF-100S |
| 12,5 | 160 m³/h | - | PTF-125S |
WITHOUT PREFILTER
| HP | Flow (9 mWC) | Sound Level at Max. Efficiency | Three-Phase Code |
|---|---|---|---|
| 7,5 | 130 m³/h | 74 dB | PT-075S |
| 10 | 155 m³/h | 75 dB | PT-100S |
| 12,5 | 170 m³/h | - | PT-125S |
| HP | D1 [mm] (ISO / DIN / EN) | D2 [mm] (ISO / DIN / EN) | D1 [inch] (BS / ANSI / ASTM / AS / NZS) | D2 [inch] (BS / ANSI / ASTM / AS / NZS) |
|---|---|---|---|---|
| 7,5 | 110 | 110 | 4" | 4" |
| 10 | 125 | 110 | 4" | 4" |
| 12,5 | 125 | 110 | 4" | 4" |
Technical Details
| Motor Power | 7,5-10-12,5 HP |
| Efficiency Class | IE3* |
| Rotation Speed | 2900 rpm |
| Protection Class | IP55 |
| Shaft Material | 420L Stainless Steel |
| Three-Phase Connection | Δ 400V / Y 690V 50Hz** |
