Swing Check Valves with HDPE Flange Adaptor
Product Description

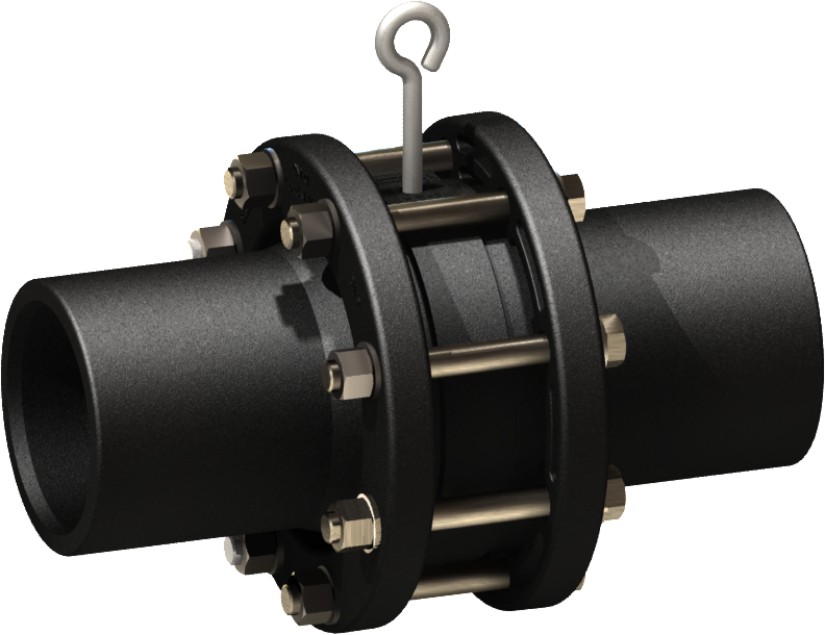

NOZBART® Swing Check Valves With HDPE Flange Adaptor
- Test pressure of 42 bar (420 mWC) for all sizes, PN10 operating pressure
- Thick and high-strength body and cover
- Check valve cover can be easily removed and reinstalled within its own body without stressing the system
- Full bore in all sizes: 90 - 110 - 125 - 140 - 160 - 200 - 225 - 250 - 280 - 315 mm
- Cover reinforced with a 316 stainless steel shaft placed in the hinge hub
- Flow direction arrow inside the check valve
- Suitable for both vertical and horizontal installation
- Corrosion-free design where the fluid does not come into contact with any metal
- Easy installation and alignment with stud bolts
- Absolute tightness even with a 2 m head difference
- Galvanized and 304 stainless bolt options are available upon request.
- PP flange and PP coated steel flange options
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
PP FLANGE HDPE FLANGE ADAPTOR
| D (mm) | D (inch) | DN(mm) | CODE ( Galvanized Bolts) | CODE (304 Stainless Bolt) |
|---|---|---|---|---|
| 90 | 3" | 80 | PETÇ-090 | PETÇ-091 |
| 110 | 4" | 100 | PETÇ-110 | PETÇ-111 |
| 125 | 4 1/2" | 125 | PETÇ-125 | PETÇ-126 |
| 140 | 5" | 125 | PETÇ-140 | PETÇ-141 |
| 160 | 6" | 150 | PETÇ-160 | PETÇ-161 |
| 200 | 7" | 200 | PETÇ-200 | PETÇ-201 |
| 225 | 8" | 200 | PETÇ-225 | PETÇ-226 |
| 250 | 9" | 250 | PETÇ-250 | PETÇ-251 |
| 280 | 10" | 250 | PETÇ-280 | PETÇ-281 |
| 315 | 12" | 300 | PETÇ-315 | PETÇ-316 |
PP FLANGE WITH STEEL CORE HDPE FLANGE ADAPTOR
| D (mm) | D (inch) | DN(mm) | CODE ( Galvanized Bolts) | CODE (304 Stainless Bolt) |
|---|---|---|---|---|
| 90 | 3" | 80 | PETÇ-092 | PETÇ-093 |
| 110 | 4" | 100 | PETÇ-112 | PETÇ-113 |
| 125 | 4 1/2" | 125 | PETÇ-127 | PETÇ-128 |
| 140 | 5" | 125 | PETÇ-142 | PETÇ-143 |
| 160 | 6" | 150 | PETÇ-162 | PETÇ-163 |
| 200 | 7" | 200 | PETÇ-202 | PETÇ-203 |
| 225 | 8" | 200 | PETÇ-227 | PETÇ-228 |
| 250 | 9" | 250 | PETÇ-252 | PETÇ-253 |
| 280 | 10" | 250 | PETÇ-282 | PETÇ-283 |
| 315 | 12" | 300 | PETÇ-317 | PETÇ-318 |
