U-PVC Double-Acting Pneumatic Actuated Butterfly Valves
Product Description
Nozbart® U-PVC Double-Acting Pneumatic Actuated Butterfly Valves
These valves, built with a durable U-PVC body, offer long-lasting and reliable solutions in systems requiring chemical resistance. The double-acting pneumatic actuator allows both opening and closing with air pressure, ensuring more precise and controlled operation.
Key Features:
- EPDM gasketed structure
- Double-acting pneumatic actuator
- Corrosion-resistant U-PVC body and disc
- Lightweight design for easy installation and maintenance
- Ideal for chemical and water treatment systems
- Compatible with standard ISO mounting flanges
Applications:
- Chemical process pipelines
- Water and wastewater treatment plants
- Swimming pool systems
- Liquid transfer lines
- Industrial fluid handling systems

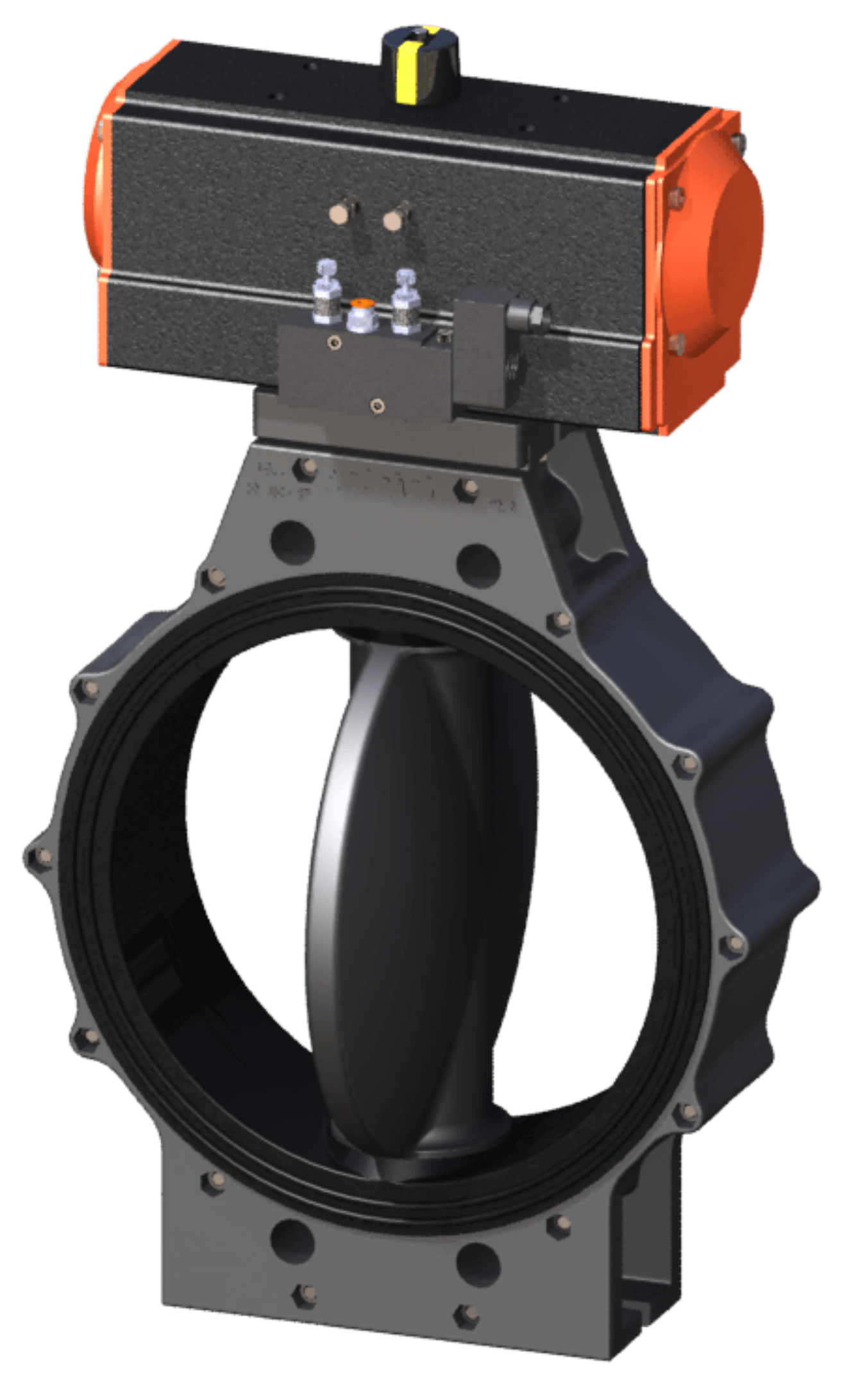

NAKED
| DN (mm) | D (Metric) | Metric Code | NPS (Inch) | D (Imperial) | Imperial Code | D (Australia / New Zealand) | Australia / New Zealand Code |
|---|---|---|---|---|---|---|---|
| ISO / DIN / EN | ISO / DIN / EN | ISO / DIN / EN | BS / ANSI / ASTM | BS / ANSI / ASTM | BS / ANSI / ASTM | AS / NZS | AS / NZS |
| 50 | 63 mm | DİM-069 | 2" | 60,3 mm | ADİM-069 | 60,3 mm | ADİM-069 |
| 65 | 75 mm | DİM-081 | 2 1/2" | 75,3 mm | ADİM-081 | 75,3 mm | ADİM-081 |
| 80 | 90 mm | DİM-096 | 3" | 88,9 mm | ADİM-096 | 88,9 mm | ADİM-096 |
| 100 | 110 mm | DİM-116 | 4" | 114,3 mm | ADİM-116 | 114,3 mm | ADİM-116 |
| 110 | 125 mm | DİM-131 | - | - | - | - | - |
| 125 | 140 mm | DİM-146 | 5" | 140,3 mm | ADİM-146 | 140,0 mm | DİM-146 |
| 150 | 160 mm | DİM-166 | 6" | 168,3 mm | ADİM-166 | 168,0 mm | DİM-166 |
| 175 | 200 mm | DİM-206 | 7" | 193,7 mm | ADİM-206 | 200,0 mm | DİM-206 |
| 200 | 225 mm | DİM-231 | 8" | 219,1 mm | ADİM-231 | 225,0 mm | DİM-231 |
| 225 | 250 mm | DİM-256 | 9" | 244,5 mm | ADİM-256 | 250,0 mm | DİM-256 |
| 250 | 280 mm | DİM-286 | 10" | 273,0 mm | ADİM-286 | 280,0 mm | DİM-286 |
| 300 | 315 mm | DİM-321 | 12" | 329,9 mm | ADİM-321 | 315,0 mm | DİM-321 |
COMPLETE
| DN (mm) | D (Metric) | Metric Code | NPS (Inch) | D (Imperial) | Imperial Code | D (Australia / New Zealand) | Australia / New Zealand Code |
|---|---|---|---|---|---|---|---|
| ISO / DIN / EN | ISO / DIN / EN | ISO / DIN / EN | BS / ANSI / ASTM | BS / ANSI / ASTM | BS / ANSI / ASTM | AS / NZS | AS / NZS |
| 50 | 63 mm | DİM-070 | 2" | 60,3 mm | ADİM-070 | 60,3 mm | ADİM-070 |
| 65 | 75 mm | DİM-082 | 2 1/2" | 75,3 mm | ADİM-082 | 75,3 mm | ADİM-082 |
| 80 | 90 mm | DİM-097 | 3" | 88,9 mm | ADİM-097 | 88,9 mm | ADİM-097 |
| 100 | 110 mm | DİM-117 | 4" | 114,3 mm | ADİM-117 | 114,3 mm | ADİM-117 |
| 110 | 125 mm | DİM-132 | - | - | - | - | - |
| 125 | 140 mm | DİM-147 | 5" | 140,3 mm | ADİM-147 | 140,0 mm | DİM-147 |
| 150 | 160 mm | DİM-167 | 6" | 168,3 mm | ADİM-167 | 168,0 mm | DİM-167 |
| 175 | 200 mm | DİM-207 | 7" | 193,7 mm | ADİM-207 | 200,0 mm | DİM-207 |
| 200 | 225 mm | DİM-232 | 8" | 219,1 mm | ADİM-232 | 225,0 mm | DİM-232 |
| 225 | 250 mm | DİM-257 | 9" | 244,5 mm | ADİM-257 | 250,0 mm | DİM-257 |
| 250 | 280 mm | DİM-287 | 10" | 273,0 mm | ADİM-287 | 280,0 mm | DİM-287 |
| 300 | 315 mm | DİM-322 | 12" | 329,9 mm | ADİM-322 | 315,0 mm | DİM-322 |
