U-PVC Single-Acting Pneumatic Actuated Butterfly Valves
Product Description
Nozbart® U-PVC Single-Acting Pneumatic Actuated Butterfly Valves
These valves, featuring a durable and lightweight U-PVC body, offer long-lasting and reliable performance in systems requiring chemical resistance. Thanks to the single-acting pneumatic actuator, they open with air pressure and close automatically via spring return.
Key Features:
- EPDM gasketed structure
- Single-acting spring return pneumatic actuator
- Corrosion-resistant U-PVC body and disc
- Lightweight design for easy installation and maintenance
- Ideal for chemical and water treatment systems
- Compatible with standard ISO mounting flanges
Applications:
- Chemical process pipelines
- Water and wastewater treatment plants
- Swimming pool systems
- Liquid transfer lines
- Industrial fluid handling systems

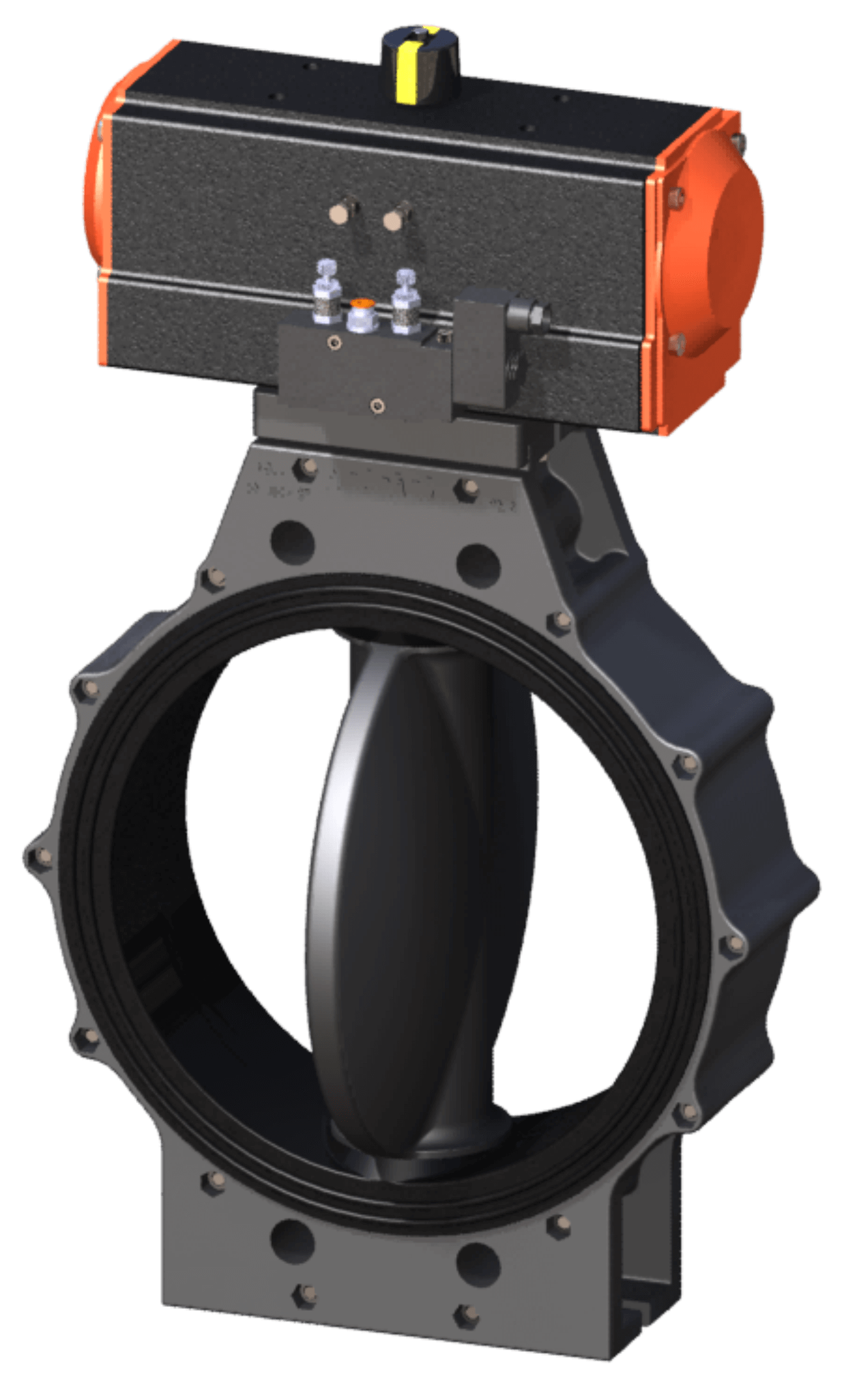

NAKED
| DN (mm) | D (Metric) | Metric Code | NPS (Inch) | D (Imperial) | Imperial Code | D (Australia / New Zealand) | Australia / New Zealand Code |
|---|---|---|---|---|---|---|---|
| ISO / DIN / EN | ISO / DIN / EN | ISO / DIN / EN | BS / ANSI / ASTM | BS / ANSI / ASTM | BS / ANSI / ASTM | AS / NZS | AS / NZS |
| 50 | 63 mm | DİM-071 | 2" | 60,3 mm | ADİM-071 | 60,3 mm | ADİM-071 |
| 65 | 75 mm | DİM-083 | 2 1/2" | 75,3 mm | ADİM-083 | 75,3 mm | ADİM-083 |
| 80 | 90 mm | DİM-098 | 3" | 88,9 mm | ADİM-098 | 88,9 mm | ADİM-098 |
| 100 | 110 mm | DİM-118 | 4" | 114,3 mm | ADİM-118 | 114,3 mm | ADİM-118 |
| 110 | 125 mm | DİM-133 | - | - | - | - | - |
| 125 | 140 mm | DİM-148 | 5" | 140,3 mm | ADİM-148 | 140,0 mm | DİM-148 |
| 150 | 160 mm | DİM-168 | 6" | 168,3 mm | ADİM-168 | 168,0 mm | DİM-168 |
| 175 | 200 mm | DİM-208 | 7" | 193,7 mm | ADİM-208 | 200,0 mm | DİM-208 |
| 200 | 225 mm | DİM-233 | 8" | 219,1 mm | ADİM-233 | 225,0 mm | DİM-233 |
| 225 | 250 mm | DİM-258 | 9" | 244,5 mm | ADİM-258 | 250,0 mm | DİM-258 |
| 250 | 280 mm | DİM-288 | 10" | 273,0 mm | ADİM-288 | 280,0 mm | DİM-288 |
| 300 | 315 mm | DİM-323 | 12" | 329,9 mm | ADİM-323 | 315,0 mm | DİM-323 |

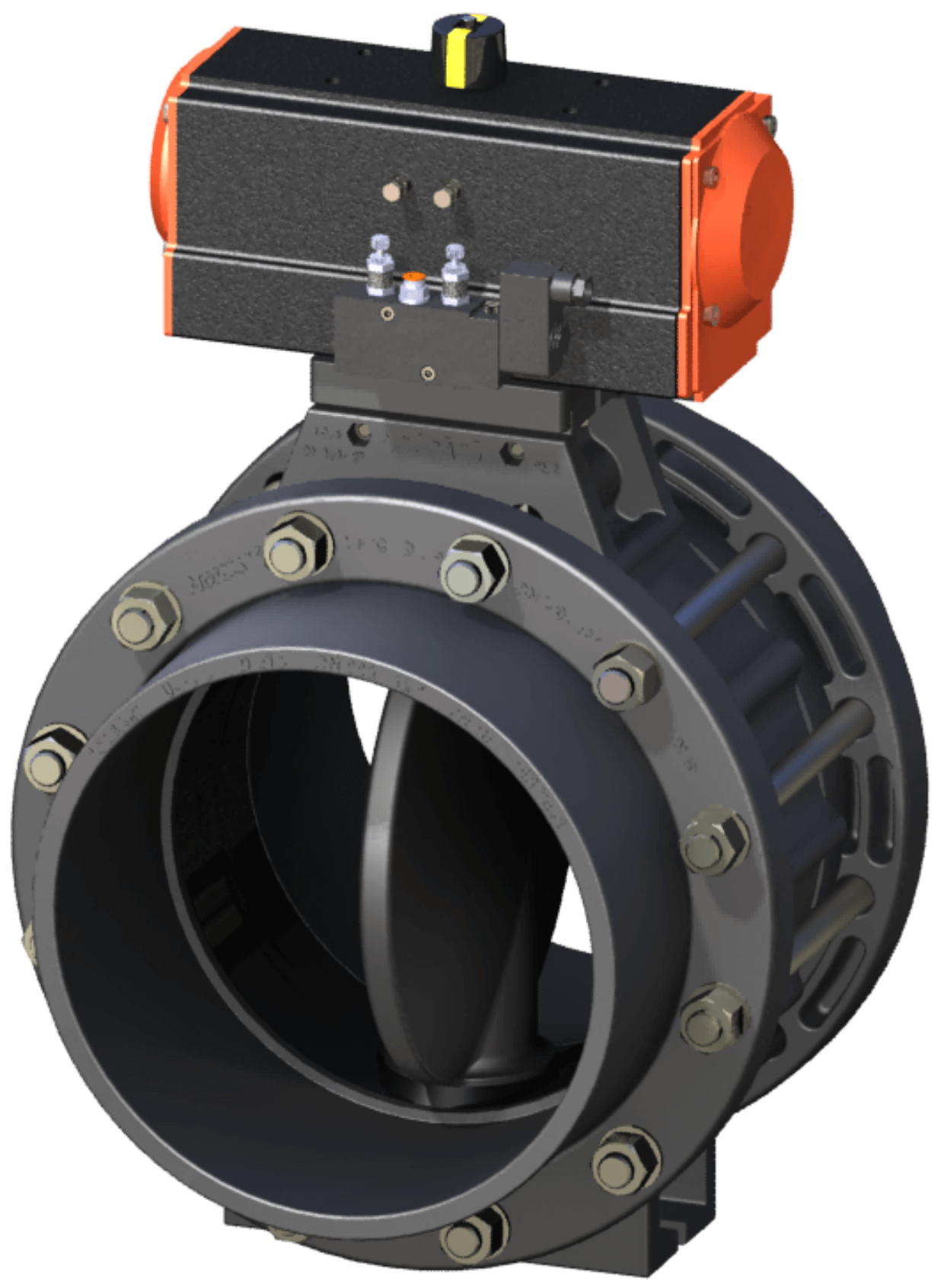

COMPLETE
| DN (mm) | D (Metric) | Metric Code | NPS (Inch) | D (Imperial) | Imperial Code | D (Australia / New Zealand) | Australia / New Zealand Code |
|---|---|---|---|---|---|---|---|
| ISO / DIN / EN | ISO / DIN / EN | ISO / DIN / EN | BS / ANSI / ASTM | BS / ANSI / ASTM | BS / ANSI / ASTM | AS / NZS | AS / NZS |
| 50 | 63 mm | DİM-072 | 2" | 60,3 mm | ADİM-072 | 60,3 mm | ADİM-072 |
| 65 | 75 mm | DİM-084 | 2 1/2" | 75,3 mm | ADİM-084 | 75,3 mm | ADİM-084 |
| 80 | 90 mm | DİM-099 | 3" | 88,9 mm | ADİM-099 | 88,9 mm | ADİM-099 |
| 100 | 110 mm | DİM-119 | 4" | 114,3 mm | ADİM-119 | 114,3 mm | ADİM-119 |
| 110 | 125 mm | DİM-134 | - | - | - | - | - |
| 125 | 140 mm | DİM-149 | 5" | 140,3 mm | ADİM-149 | 140,0 mm | DİM-149 |
| 150 | 160 mm | DİM-169 | 6" | 168,3 mm | ADİM-169 | 168,0 mm | DİM-169 |
| 175 | 200 mm | DİM-209 | 7" | 193,7 mm | ADİM-209 | 200,0 mm | DİM-209 |
| 200 | 225 mm | DİM-234 | 8" | 219,1 mm | ADİM-234 | 225,0 mm | DİM-234 |
| 225 | 250 mm | DİM-259 | 9" | 244,5 mm | ADİM-259 | 250,0 mm | DİM-259 |
| 250 | 280 mm | DİM-289 | 10" | 273,0 mm | ADİM-289 | 280,0 mm | DİM-289 |
| 300 | 315 mm | DİM-324 | 12" | 329,9 mm | ADİM-324 | 315,0 mm | DİM-324 |
