Manual PPRC Ball Acid Valves with HDPE Union
Product Description

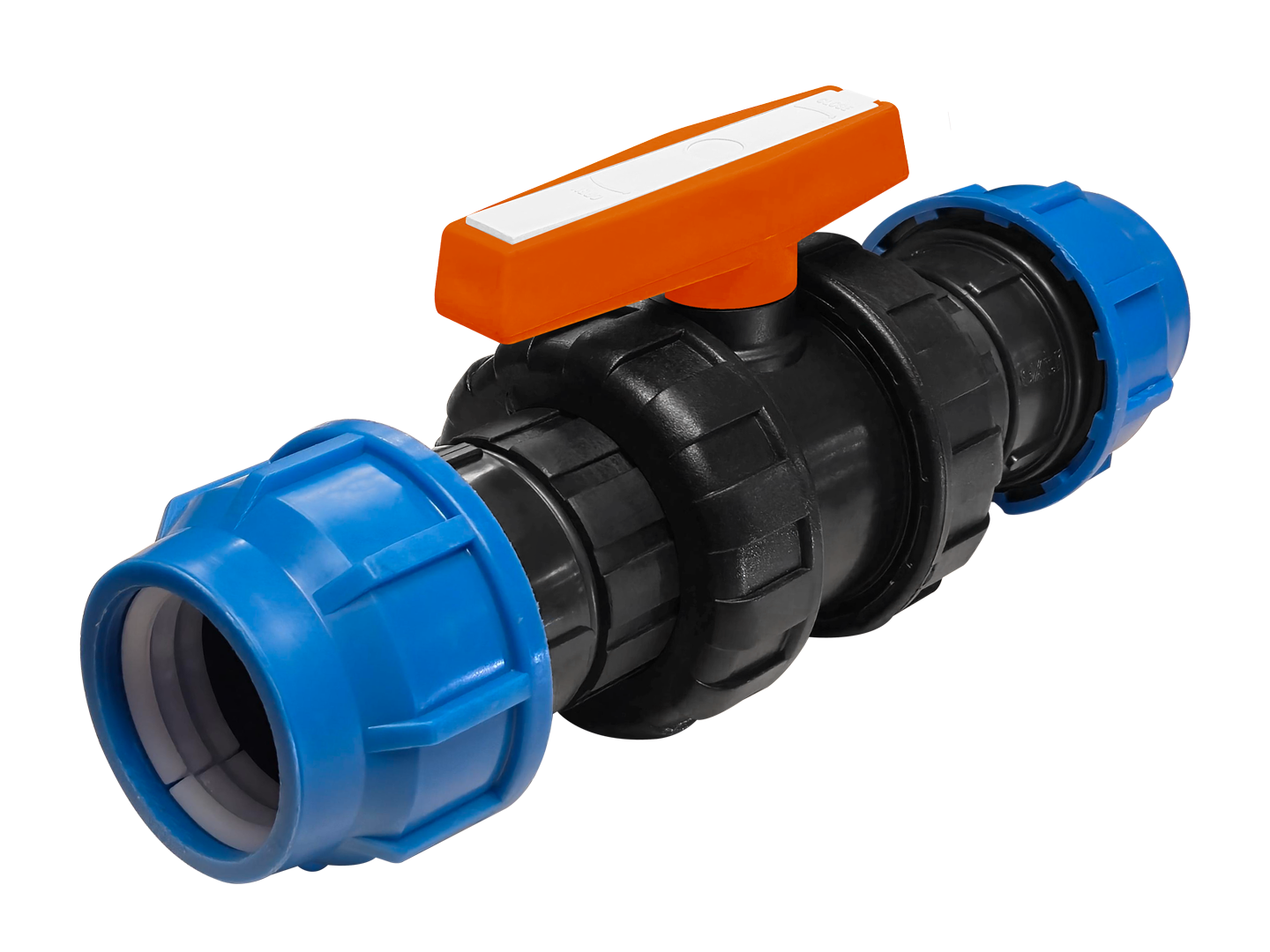

NOZBART® Manual PPRC Ball Acid Valves with HDPE Union (Both side with union )
Seal : TEFLON
O-Rings : EPDM
D20 - D63 (½” - 2”) : PN 16 (240 psi)
D75 - D110 (2½”-4”) : PN 10 (150 psi)
| D (MM) | D (INCH) | CODE |
|---|---|---|
| 20 | 1/2” | PEVA-021 |
| 25 | 3/4” | PEVA-026 |
| 32 | 1” | PEVA-033 |
| 40 | 1 ¼” | PEVA-041 |
| 50 | 1 ½” | PEVA-051 |
| 63 | 2” | PEVA-064 |
| 75 | 2 ½” | PEVA-076 |
| 90 | 3” | PEVA-091 |
| 110 | 4” | PEVA-111 |
With Gear Box
| 90 | 3” | PEVA-091D |
| 110 | 4” | PEVA-111D |
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.

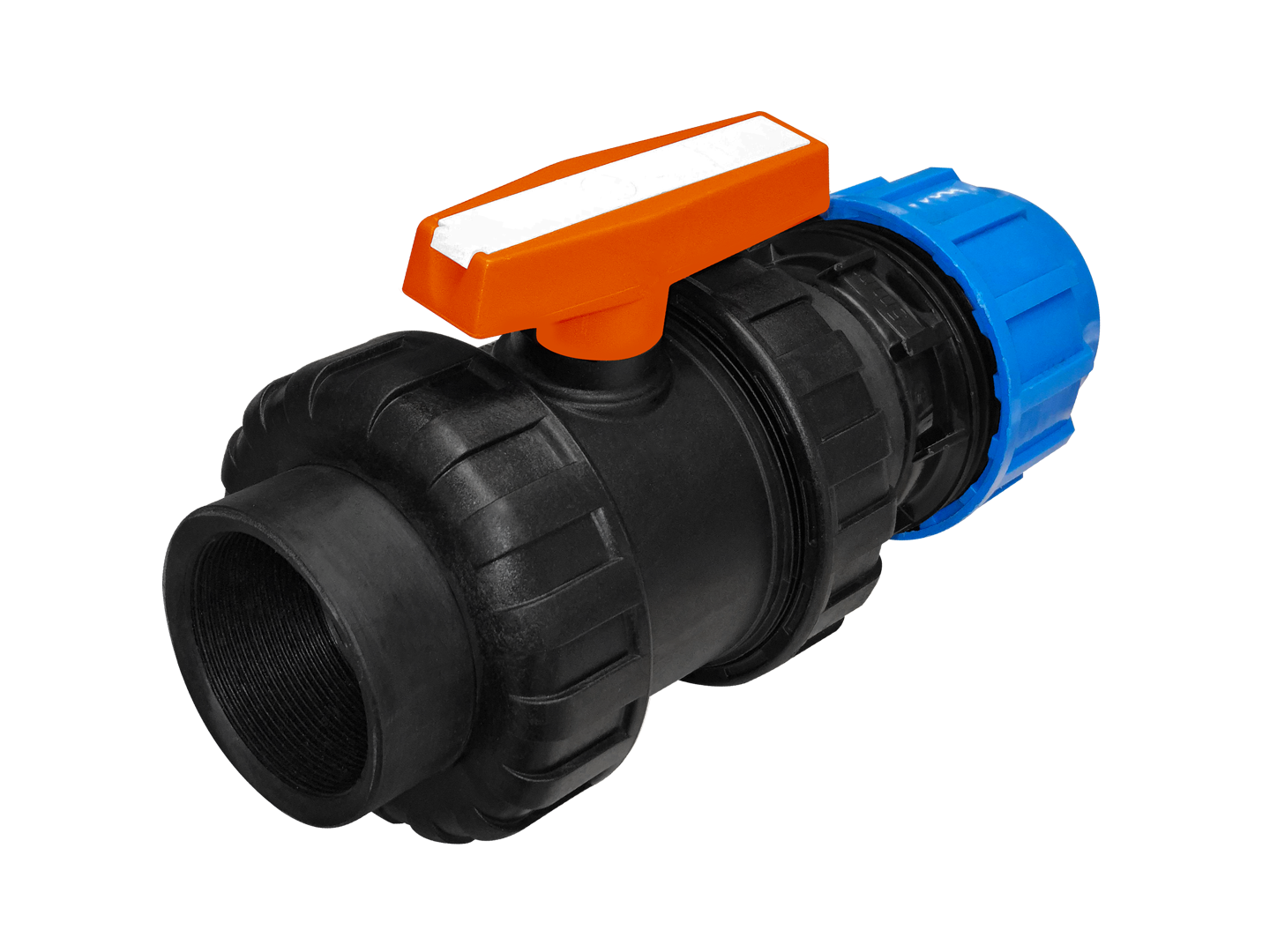

NOZBART® Manual PPRC Ball Acid Valves with HDPE Union (One side threaded one side with union)
Seal : TEFLON
O-Rings: EPDM
D20 - D63 (½” - 2”) : PN 16 (240 psi)
D75 - D110 (2½”-4”) : PN 10 (150 psi)
| D (MM) | D (INCH) | CODE |
|---|---|---|
| 20 | 1/2” | PEVA-020 |
| 25 | 3/4” | PEVA-025 |
| 32 | 1” | PEVA-032 |
| 40 | 1 ¼” | PEVA-040 |
| 50 | 1 ½” | PEVA-050 |
| 63 | 2” | PEVA-063 |
| 75 | 2 ½” | PEVA-075 |
| 90 | 3” | PEVA-090 |
| 110 | 4” | PEVA-110 |
With Gear Box
| 90 | 3” | PEVA-090D |
| 110 | 4” | PEVA-110 |
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
