PPRC Ball Valves
Product Description
NOZBART® PPRC Ball Valves
Technical Features:
- Tested one by one.
- Sizes from 20 mm to 110 mm (1/2 ”- 4”) Metric and British standard series.
- New ball valve design ensuring low operating torque and low pressure loss.
- Made of thermoplastic material, work without any corrosion
- Excellent mechanical and environmental strength.
- Ideally suited for industrial, water treatment or water distribution applications.
- Seals available in Teflon for acid and O-Rings available in EPDM.
- Union ends for easy installation and removal.
- Threaded seal carrier. It allows the disassembling of the valve while maintaining system pressure.
Seal: TEFLON
O-Rings: EPDM / NBR / Viton
D20 - D63 (½” - 2”) : PN 16 (240 psi)
D75 - D110 (2½”-4”) : PN 10 (150 psi)

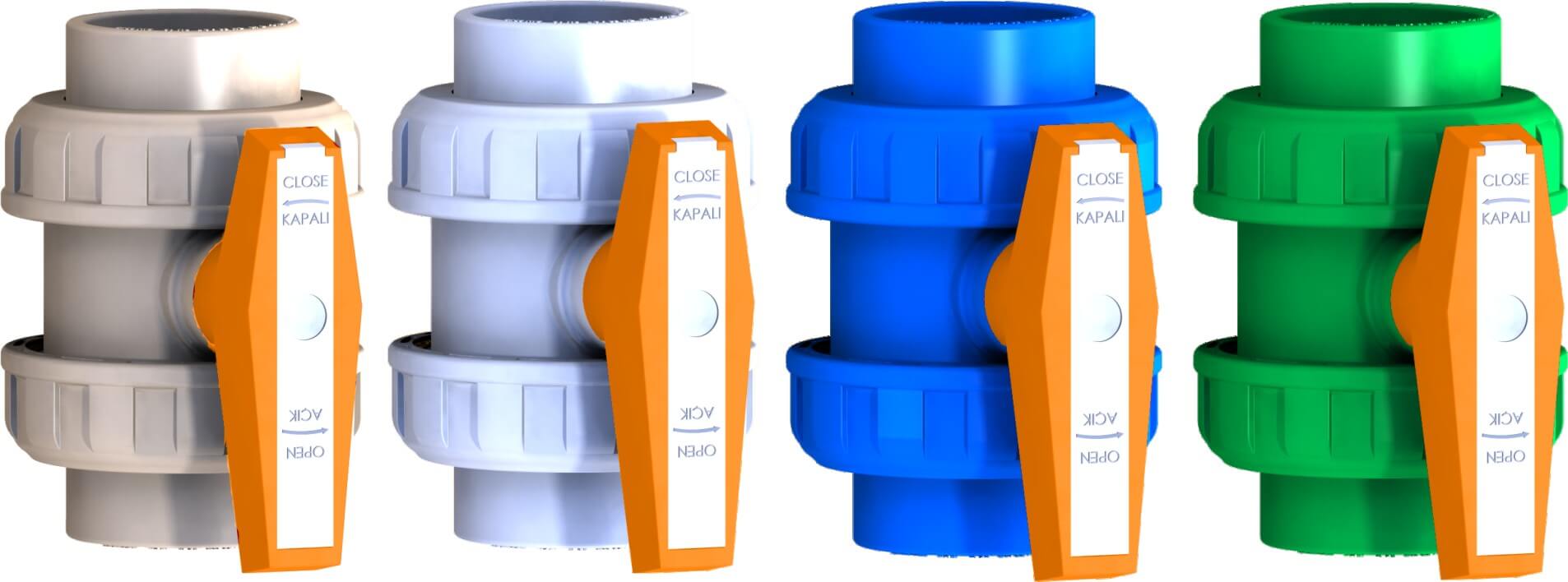

Codes for colors:
| D (mm) | D (INCH) | Code (White) | Code (Grey) | Code (Blue) | Code (Green) |
|---|---|---|---|---|---|
| 20 | 1/2” | VPPB-020 | VPPG-020 | VPPM-020 | VPPY-020 |
| 25 | 3/4” | VPPB-025 | VPPG-025 | VPPM-025 | VPPY-025 |
| 32 | 1” | VPPB-032 | VPPG-032 | VPPM-032 | VPPY-032 |
| 40 | 1 ¼” | VPPB-040 | VPPG-040 | VPPM-040 | VPPY-040 |
| 50 | 1 ½” | VPPB-050 | VPPG-050 | VPPM-050 | VPPY-050 |
| 63 | 2 | VPPB-063 | VPPG-063 | VPPM-063 | VPPY-063 |
| 75 | 2 ½ | VPPB-075 | VPPG-075 | VPPM-075 | VPPY-075 |
| 90 | 3” | VPPB-090 | VPPG-090 | VPPM-090 | VPPY-090 |
| 110 | 4” | VPPB-110 | VPPG-110 | VPPM-110 | VPPY-110 |
With gear box
| 90 | 3” | VPPB-090D | VPPG-090D | VPPM-090D | VPPY-090D | 4 |
| 110 | 4” | VPPB-110D | VPPG-110D | VPPM-110D | VPPY-110D | 2 |
Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
