PPRC Double-Acting/Single-Acting Pneumatic Actuated Ball Valves (Welding)
Product Description
Technical details:
- Tested one by one
- Sizes from 20 mm (1/2”) to 110 mm (4”) Metric and British standars series.
- New ball valve design ensuring low operating torque and low pressure loss.
- Made of thermoplastic material, work without any corrosion.
- Excellent mechanical and environmental strength.
- Ideally suited for industrial, water treatment or water distribution applications.
- Seals available in Teflon for acid and O-Rings available in EPDM.
- Union ends for easy installation and removal.
- Threaded seal carrier. It allows the disassembling of the valve while maintaining system pressure.

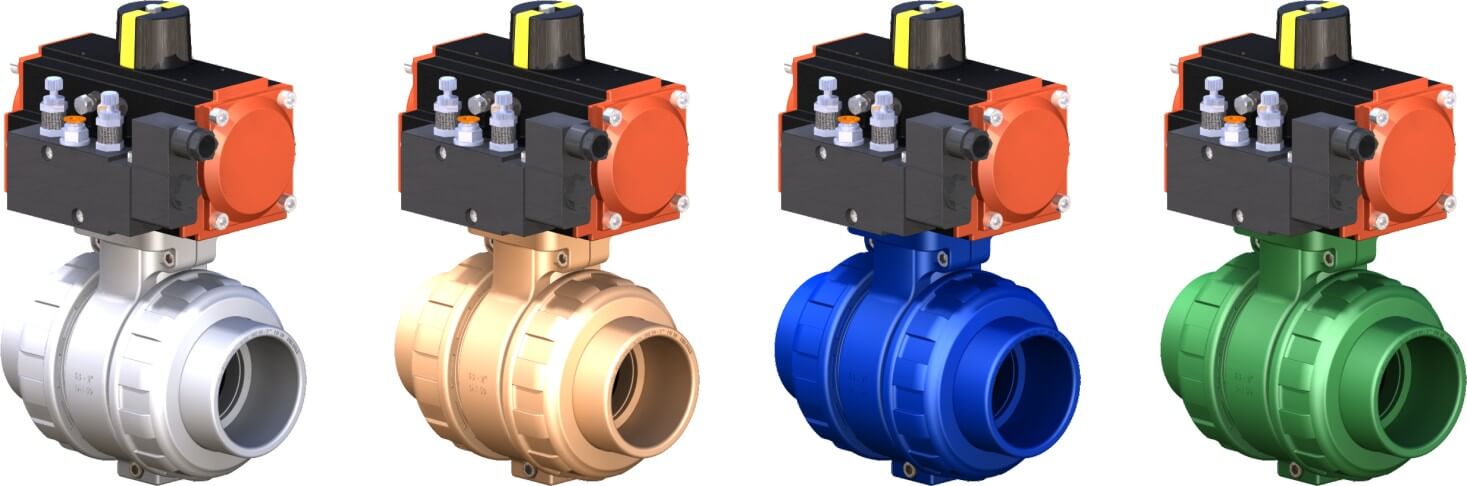

NOZBART® PPRC Double-Acting Pneumatic Actuated Ball Valves
Seals: TEFLON
O-Rings: EPDM
D20 - D63 (½” - 2”) : PN 16 (240 psi)
D75 - D1 a10 (2½”-4”) : PN 10 (150 psi)
| D (MM) | D (INC) | CODE(white) | CODE(grey) | CODE (blue) | CODE(green) |
|---|---|---|---|---|---|
| 32 | 1” | VPPPB-032 | VPPPG-032 | VPPPM-032 | VPPPY-032 |
| 40 | 1 ¼” | VPPPB-040 | VPPPG-040 | VPPPM-040 | VPPPY-040 |
| 50 | 1 ½” | VPPPB-050 | VPPPG-050 | VPPPM-050 | VPPPY-050 |
| 63 | 2” | VPPPB-063 | VPPPG-063 | VPPPM-063 | VPPPY-063 |
| 75 | 2 ½” | VPPPB-075 | VPPPG-075 | VPPPM-075 | VPPPY-075 |
| 90 | 3” | VPPPB-090 | VPPPG-090 | VPPPM-090 | VPPPY-090 |
| 110 | 4” | VPPPB-110 | VPPPG-110 | VPPPM-110 | VPPPY-110 |
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
NOZBART® PPRC Single-Acting Pneumatic Actuated Ball Valves
Seals: TEFLON
O-Rings: EPDM
D20 - D63 (½” - 2”) : PN 16 (240 psi)
D75 - D1 a10 (2½”-4”) : PN 10 (150 psi)
| D (MM) | D (INC) | CODE(white) | CODE(grey) | CODE(blue) | CODE(green) |
|---|---|---|---|---|---|
| 32 | 1” | VPPPB-035 | VPPPG-035 | VPPPM-035 | VPPPY-035 |
| 40 | 1 ¼” | VPPPB-043 | VPPPG-043 | VPPPM-043 | VPPPY-043 |
| 50 | 1 ½” | VPPPB-053 | VPPPG-053 | VPPPM-053 | VPPPY-053 |
| 63 | 2” | VPPPB-066 | VPPPG-066 | VPPPM-066 | VPPPY-066 |
| 75 | 2 ½” | VPPPB-078 | VPPPG-078 | VPPPM-078 | VPPPY-078 |
| 90 | 3” | VPPPB-093 | VPPPG-093 | VPPPM-093 | VPPPY-093 |
| 110 | 4” | VPPPB-113 | VPPPG-113 | VPPPM-113 | VPPPY-113 |
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
