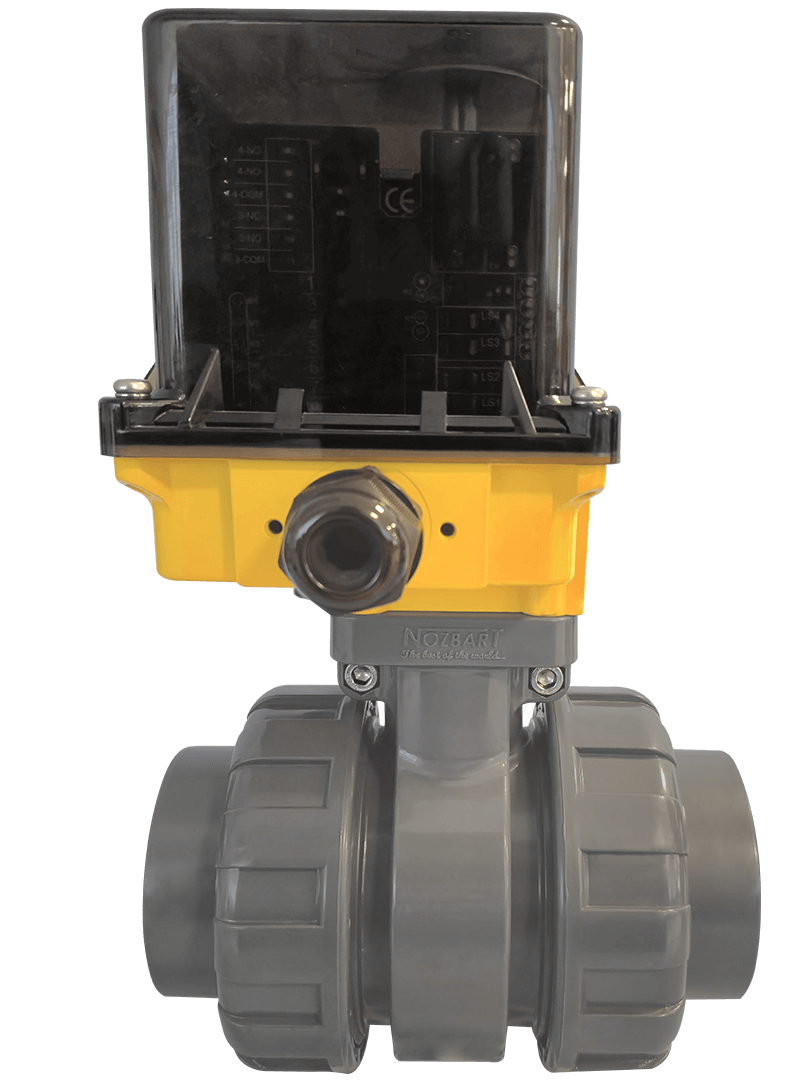

U-PVC Electric Actuation One Side-Both Side Water Ball Valves

Technical details:

• Tested one by one.
• Sizes from 20 mm to 110 mm (1/2 ”- 4”) Metric and British standard series.
• New ball valve design ensuring low operating torque and low pressure loss.
• Made of thermoplastic material, work without any corrosion
• Excellent mechanical and environmental strength.
• Ideally suited for industrial, water treatment or water distribution applications.
• Seals available in Teflon for acid and O-Rings available in EPDM.
• Union ends for easy installation and removal.
• Threaded seal carrier. It allows the disassembling of the valve while maintaining system pressure.

Seal: HDPE

O-Rings: EPDM

D20 - D63 (½” - 2”) : PN 16 (240 psi)

D75 - D110 (2½”-4”) : PN 10 (150 psi)

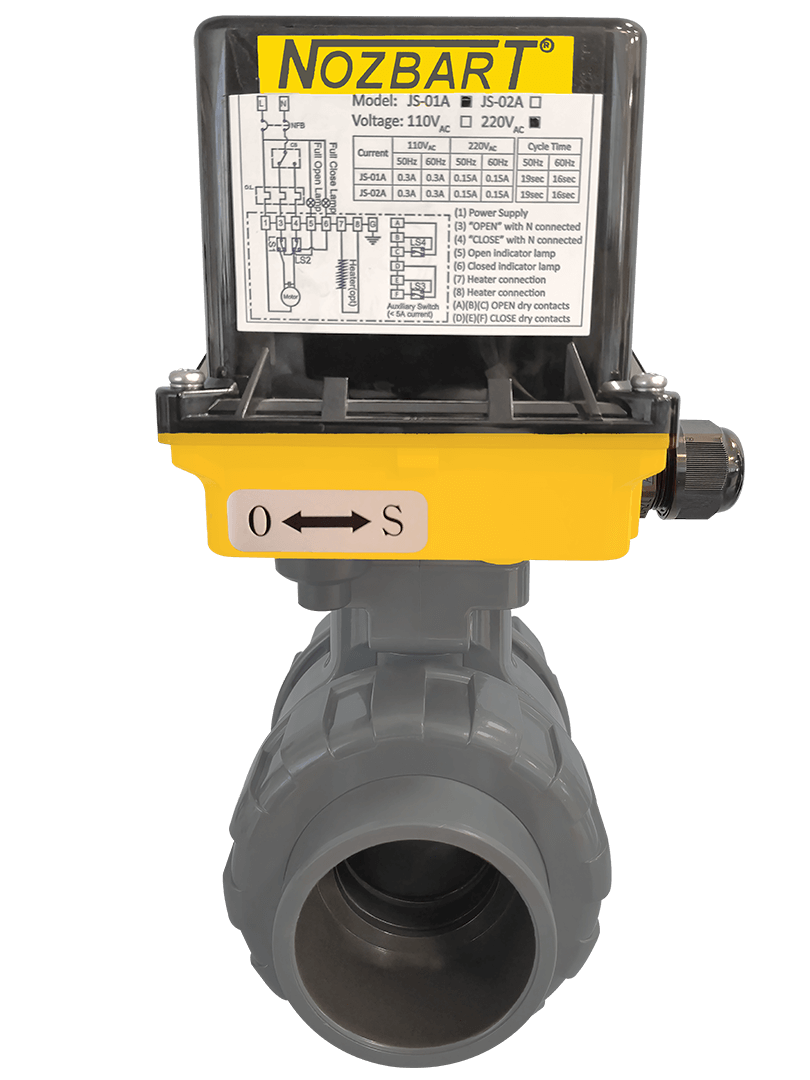

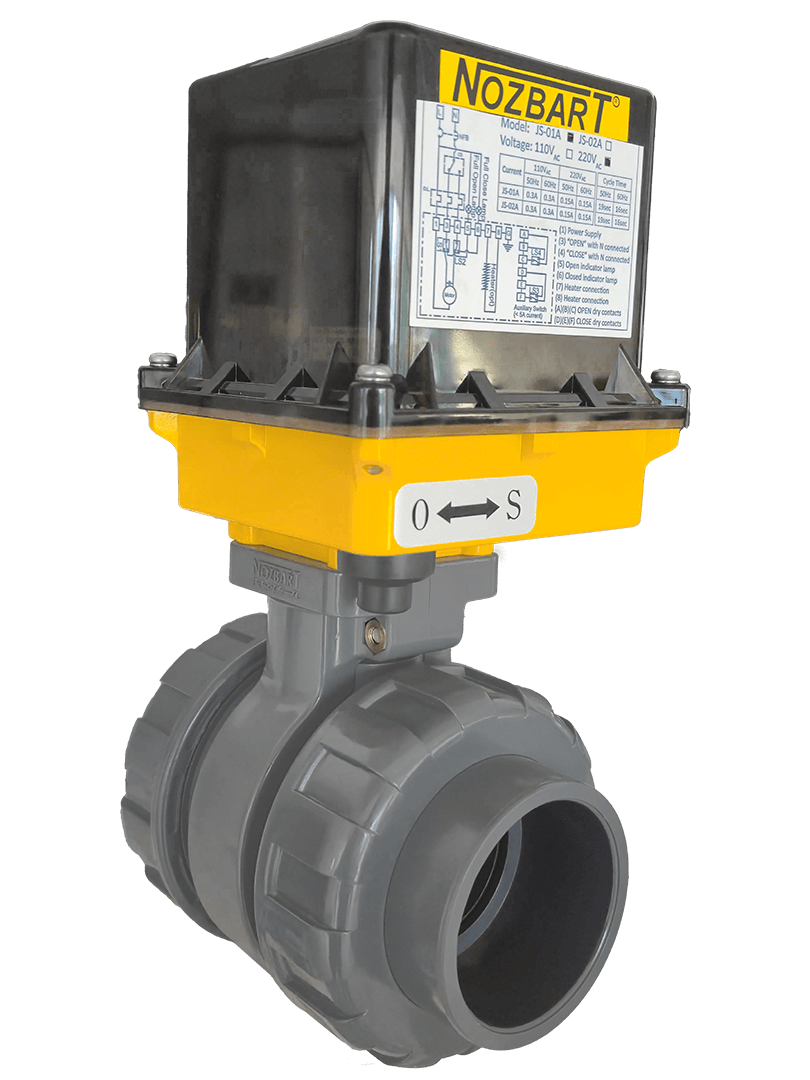

NOZBART® U-PVC Electric Actuation Threaded Water Ball Valve

• Modulating control actuation. (Optional)

•  4-20 mA
• 2-10 VDC
• 0-10 VDC
• 1-5 VDC
• 0-5 VDC

• * With Reduction.

• Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.

• Modulating control module is requested, Price difference will be added.The physical apperance of actuators may change..

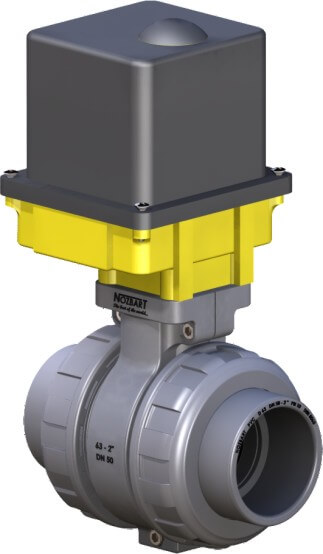

NOZBART® U-PVC Electric Actuation One Side Threaded Water Ball Valve
