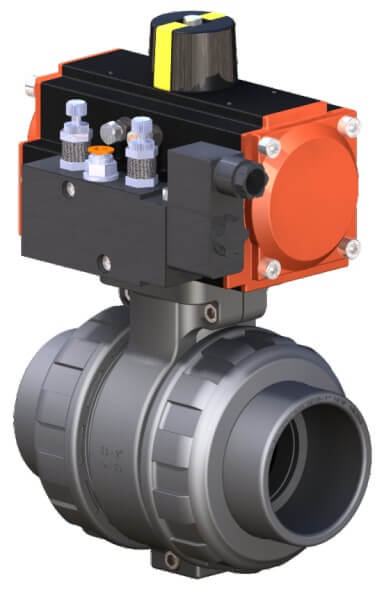

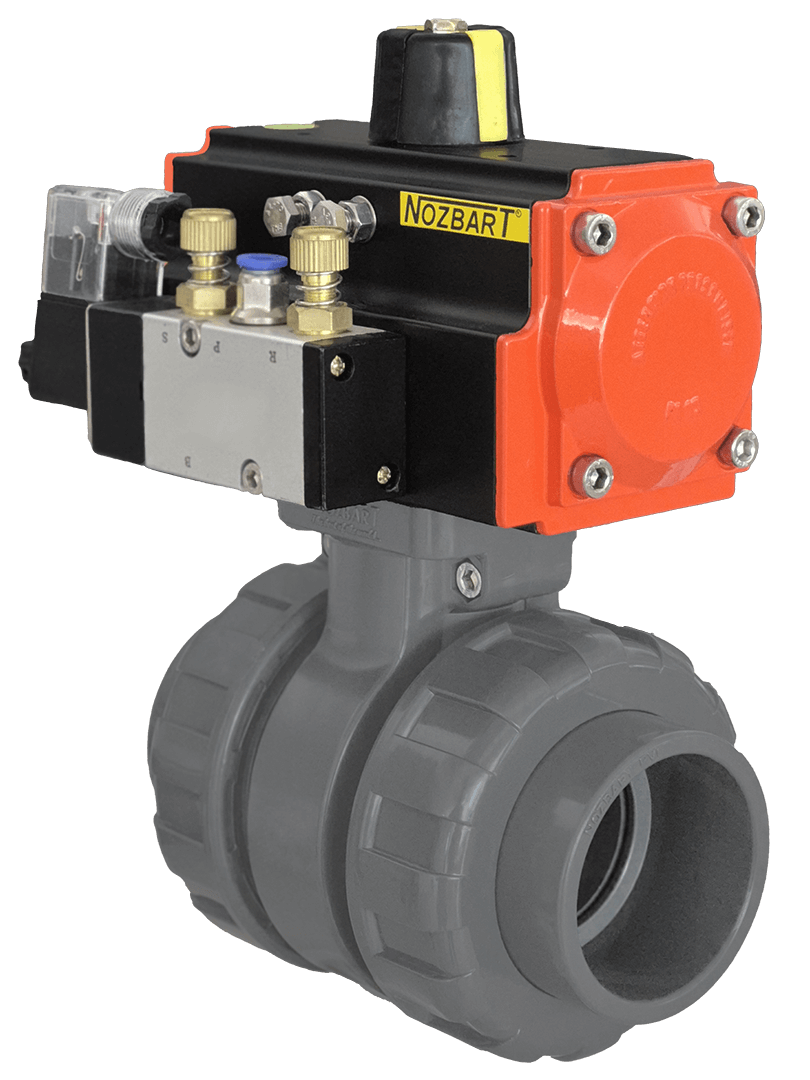

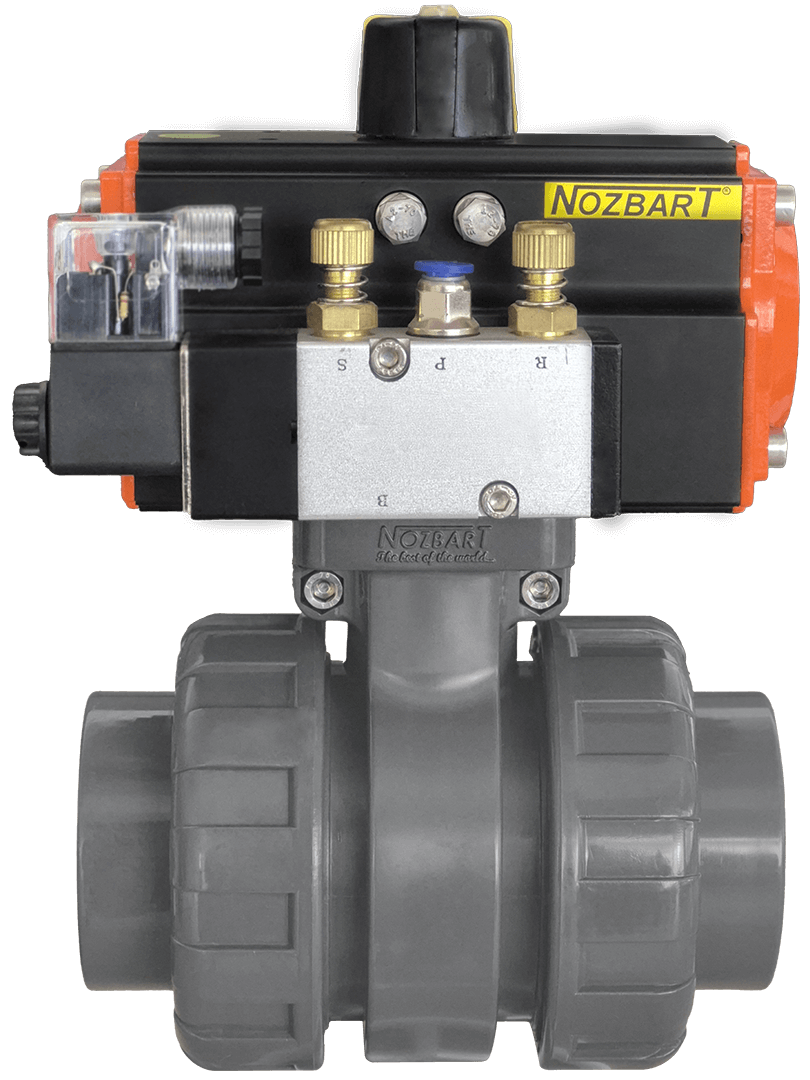

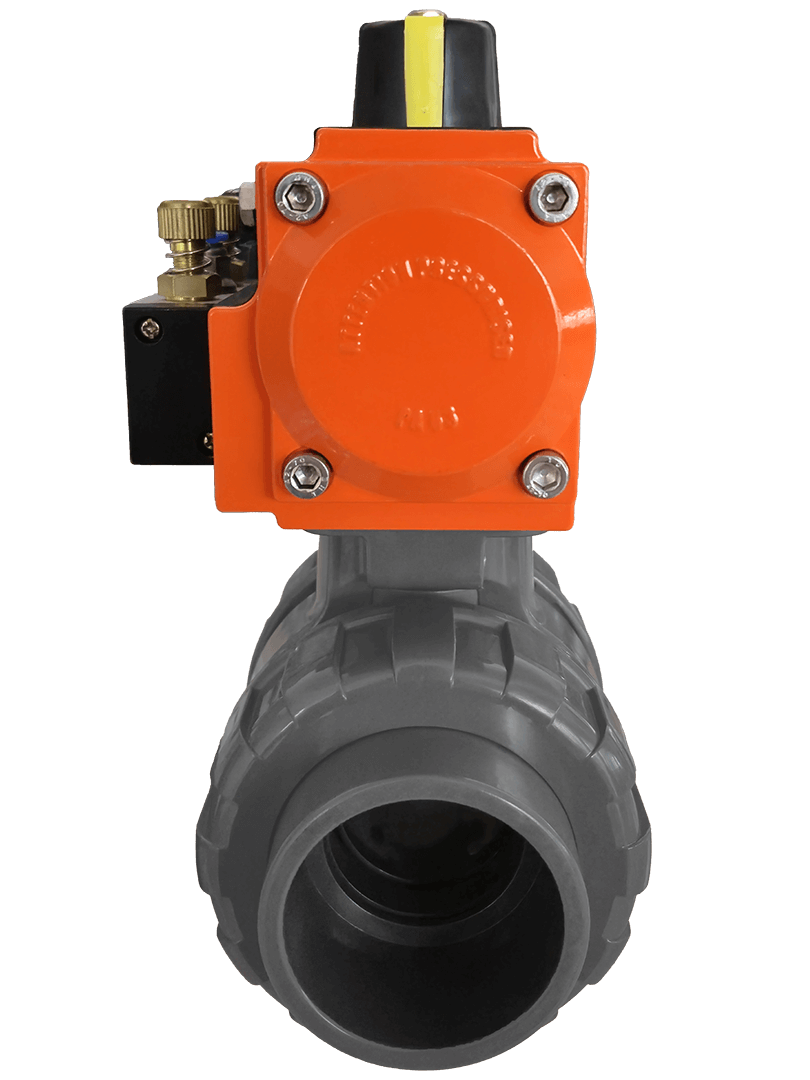

U-PVC Single-Acting Pneumatic Actuated One/Double Side Threaded Ball Valves
Product Description
Technical details:
- Tested one by one
- Sizes from 20 mm (1/2”) to 110 mm (4”) Metric and British standars series.
- New ball valve design ensuring low operating torque and low pressure loss.
- Made of thermoplastic material, work without any corrosion.
- Excellent mechanical and environmental strength.
- Ideally suited for industrial, water treatment or water distribution applications.
- Seals available in Teflon for acid and O-Rings available in EPDM.
- Union ends for easy installation and removal.
- Threaded seal carrier. It allows the disassembling of the valve while maintaining system pressure.
U-PVC Ball Valves
Seals: HDPE
O-Rings: EPDM
D20 - D63 (½” - 2”) : PN 16 (240 psi)
D75 - D1 a10 (2½”-4”) : PN 10 (150 psi)
NOZBART® U-PVC Single-Acting Pneumatic Actuated Double Side Threaded Ball Valves
| DN (mm) | KOD | D (Inch) |
|---|---|---|
| BSP / NPT / | BSP / NPT / | BSP / NPT / |
| *15 | VPVCP-024I | 1/2'' |
| *20 | VPVCP-030 | 3/4'' |
| 25 | VPVCP-037 | 1'' |
| 32 | VPVCP-045 | 1 1/4'' |
| 40 | VPVCP-055 | 1 1/2'' |
| 50 | VPVCP-068 | 2'' |
| 65 | VPVCP-080 | 2 1/2'' |
| 80 | VPVCP-095 | 3'' |
| 100 | VPVCP-115 | 4'' |
- *With Reduction.
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
NOZBART® U-PVC Single-Acting Pneumatic Actuated One Side Threaded Ball Valves
| D (Metric) | Code (Metric) | D (Inch) | D (Imperial) | Code (Imperial) |
|---|---|---|---|---|
| TSE / ISO / DIN / | TSE / ISO / DIN / | BS / ANSI / ASTM / AS / NZS | BS / ANSI / ASTM / AS / NZS | BS / ANSI / ASTM / AS / NZS |
| *20 mm | VPVCP-024 | 1/2'' | 21,3 mm | AVPVCP-024 |
| *25 mm | VPVCP-029 | 3/4'' | 26,9 mm | AVPVCP-029 |
| 32 mm | VPVCP-036 | 1'' | 33,7 mm | AVPVCP-036 |
| 40 mm | VPVCP-044 | 1 1/4'' | 42,4 mm | AVPVCP-044 |
| 50 mm | VPVCP-054 | 1 1/2'' | 48,3 mm | AVPVCP-054 |
| 63 mm | VPVCP-067 | 2'' | 60,3 mm | AVPVCP-067 |
| 75 mm | VPVCP-079 | 2 1/2'' | 75,3 mm | AVPVCP-079 |
| 90 mm | VPVCP-094 | 3'' | 88,9 mm | AVPVCP-094 |
| 110 mm | VPVCP-114 | 4'' | 114,3 mm | AVPVCP-114 |
- *With Reduction.
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
