U-PVC Ball Valves With Flange
Product Description

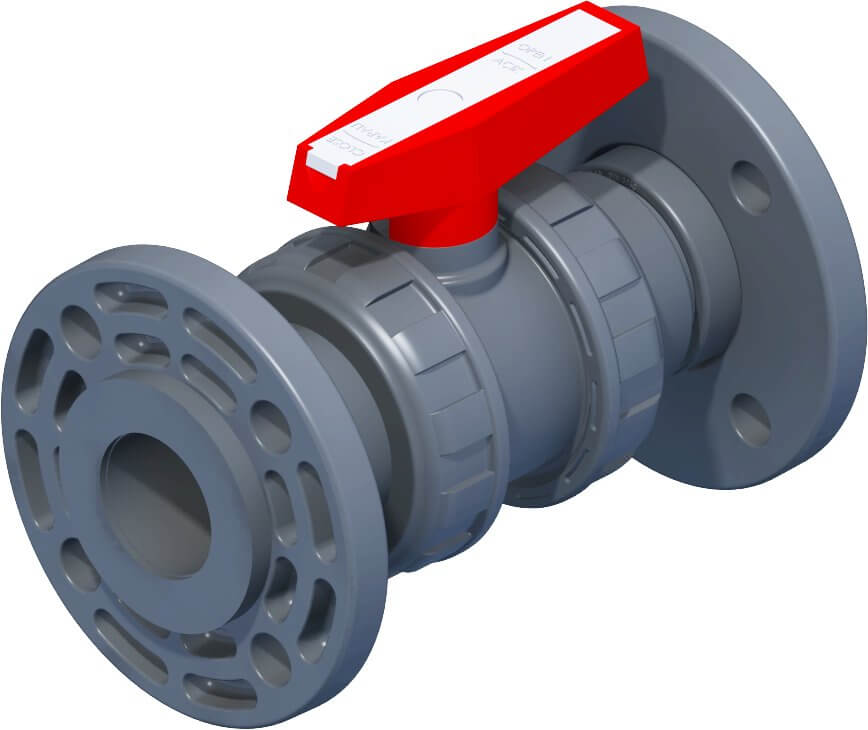

NOZBART® U-PVC Ball Valves With Flange (Solvent)
Technical details:
- Tested one by one.
- Sizes from 20 mm to 110 mm (1/2 ”- 4”) Metric and British standard series.
- New ball valve design ensuring low operating torque and low pressure loss.
- Made of thermoplastic material, work without any corrosion
- Excellent mechanical and environmental strength.
- Ideally suited for industrial, water treatment or water distribution applications.
- Seals available in Teflon for acid and O-Rings available in EPDM.
- Union ends for easy installation and removal.
- Threaded seal carrier. It allows the disassembling of the valve while maintaining system pressure.
Seals: HDPE
O-Rings: EPDM
D20 - D63 (½” - 2”) : PN 16 (240 psi)
D75 - D110 (2½”-4”) : PN 10 (150 psi)
| DN (mm) | D (Metric) | Code for Metric | D (Inch) | D (Imperial) | Code for Imperial | Package |
|---|---|---|---|---|---|---|
| TSE / ISO / DIN | TSE / ISO / DIN / | TSE / ISO / DIN / | BS / ANSI / ASTM / AS / NZS | BS / ANSI / ASTM / AS / NZS | BS / ANSI / ASTM / AS / NZS | Unit |
| 15 | 20 mm | VKF-020 | 1/2'' | 21,3 mm | AVKF-020 | 12 |
| 20 | 25 mm | VKF-025 | 3/4'' | 26,9 mm | AVKF-025 | 12 |
| 25 | 32 mm | VKF-032 | 1'' | 33,7 mm | AVKF-032 | 12 |
| 32 | 40 mm | VKF-040 | 1 1/4'' | 42,4 mm | AVKF-040 | 12 |
| 40 | 50 mm | VKF-050 | 1 1/2'' | 48,3 mm | AVKF-050 | 12 |
| 50 | 63 mm | VKF-063 | 2'' | 60,3 mm | AVKF-063 | 12 |
| 65 | 75 mm | VKF-075 | 2 1/2'' | 75,3 mm | AVKF-075 | 4 |
| 80 | 90 mm | VKF-090 | 3'' | 88,9 mm | AVKF-090 | 4 |
| 100 | 110 mm | VKF-110 | 4'' | 114,3 mm | AVKF-110 | 2 |
With gear box:
| 80 | 90 mm | VKF-090D | 3'' | 88,9 mm | AVKF-090D | 4 |
| 100 | 110 mm | VKF-110D | 4'' | 114,3 mm | AVKF-110D | 2 |
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
