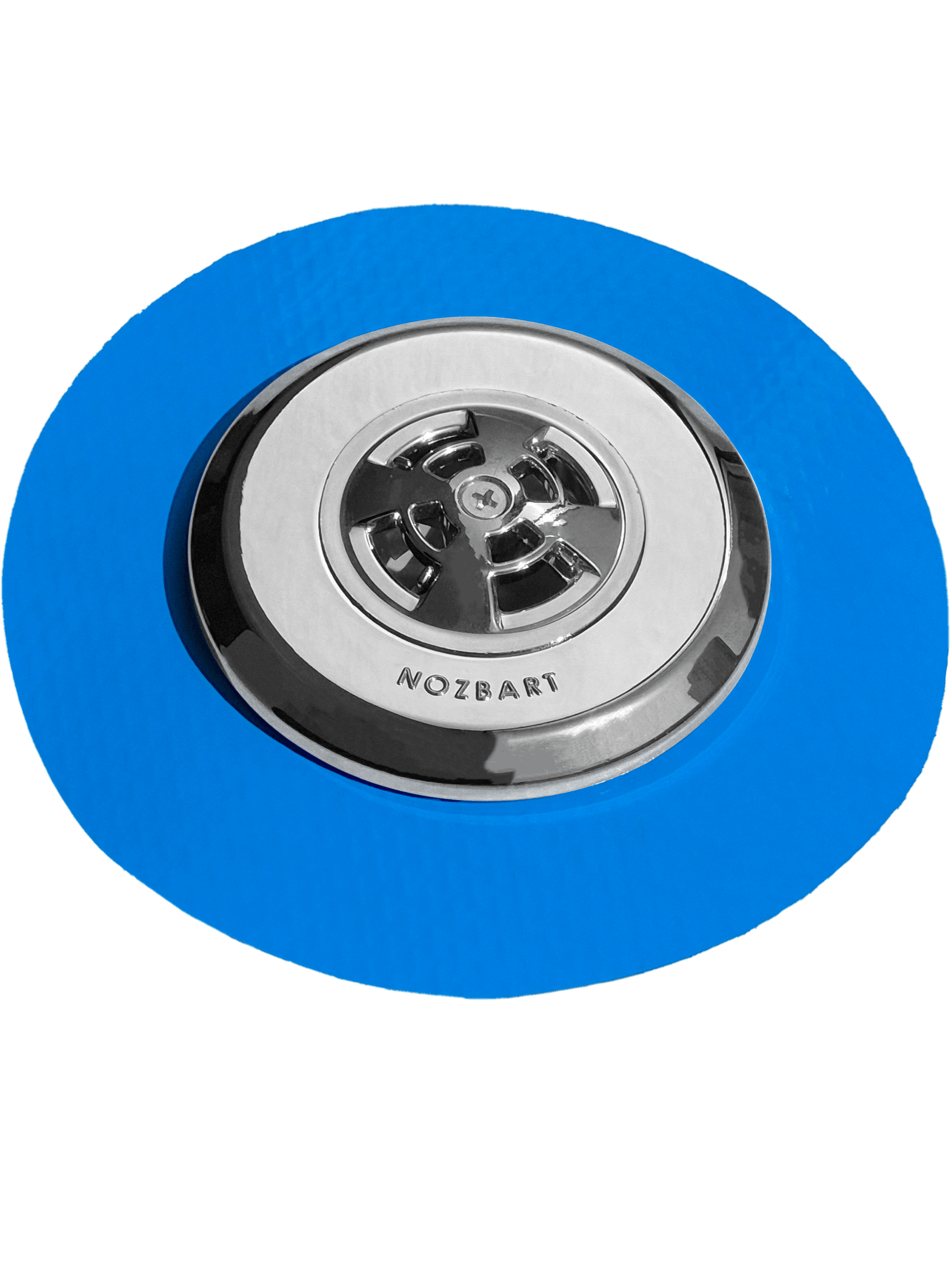

Adjustable Liner Floor Inlet (Chrome) With Brass Insert

NOZBART® Adjustable Floor Inlet (Chrome) With Brass Insert

Nozbart nozzles are manufactured from durable, high-quality plastic materials and offer a comprehensive range of over 400 product variants to meet diverse needs. Renowned for their material quality and manufacturing precision, Nozbart nozzles deliver an experience that exceeds expectations in terms of performance and variety.

Key Features:

• A wide product range of nozzles suitable for all types of pools, including concrete, liner, panel, and polyester pools.
• The ball is securely fixed by tightening the sealing ring with a key. Unlike other models on the market, the ball does not fall into the pool when swimmers remove the nozzle cover.
• The internal components of the nozzle body are fully compatible with each other. Depending on your needs, you can easily switch between: Ball nozzles with side feed at various flow rates, Flow-adjustable bottom feed nozzles, Side outlet feed nozzles, Fixed flow cage (fixed flow) feed-suction nozzles, Vacuum nozzles.
• Ball nozzles with side feed at various flow rates,
• Flow-adjustable bottom feed nozzles,
• Side outlet feed nozzles,
• Fixed flow cage (fixed flow) feed-suction nozzles,
• Vacuum nozzles.
• Adhesive models can be bonded into 63 mm U-PVC (PN10) pipes.

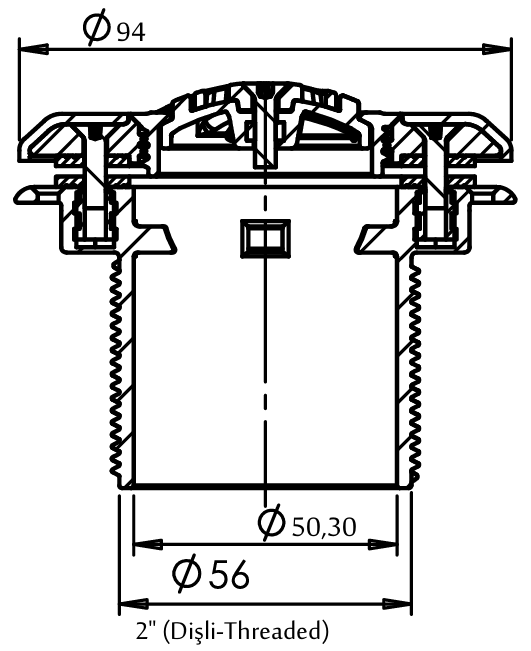

• Threaded models feature 2” pipe threads. All models can accommodate 50 mm U-PVC pipes bonded internally.
• Hinged models offer hassle-free installation with up to 10° tolerance for pipeline misalignment thanks to the full ball design on the adhesive side.
• Ball feed nozzles are specially manufactured for flow rates of 2.2, 4.5, and 7 m³/h. Therefore, unlike other models on the market, no additional labor or tools are needed to break the ball. They are ready to use at your desired flow rate.
• Nozzles are made from original ABS material with UV and antioxidant additives for long-lasting durability.
• Our ball feed (with safety cage) and bottom feed nozzles comply with EN 13451-3 standards.
• Finger jam protection is ensured, and the holes are smaller than 8 mm.
• Bottom feed nozzles feature a special design that circulates water at the pool floor, lifting dirt to the surface where it can exit through overflow channels or skimmers. This helps keep the pool floor clean.
• Flow-adjustable nozzles allow precise flow regulation. Once adjusted, the upper screw is tightened to lock the position, ensuring stable and perfect pool water balance.

Model:

Adjustable Liner Floor Inlet (Chrome) With Brass Insert

• Nozzles are manufactured from genuine ABS material.
• They are UV-resistant and contain antioxidant additives for long-lasting durability.
• Our ball nozzles (with safety cage) and bottom feed nozzles comply with EN 13451-3 standards.
• Finger pinch protection is ensured, with holes smaller than 8 mm.
• Adhesive models are suitable for bonding inside 63 mm U-PVC pipes rated for 10 Bar pressure.
