PPRC Double-Acting/Single-Acting Pneumatic Actuated Ball Valves (With flange)
Product Description

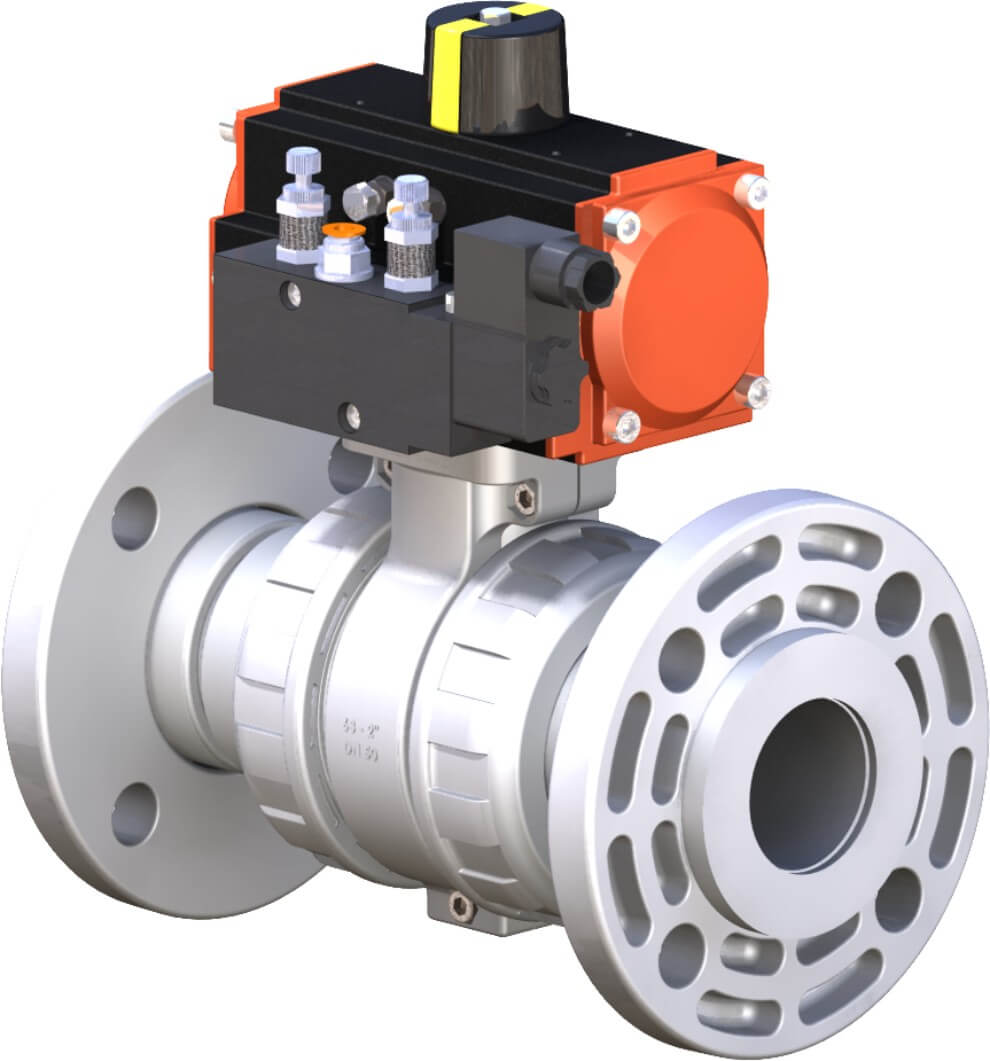

NOZBART® PPRC Double-Acting Pneumatic Actuated Ball Valves (With flange)
Seals: TEFLON
O-Rings: EPDM
D20 - D63 (½” - 2”) : PN 16 (240 psi)
D75 - D1 a10 (2½”-4”) : PN 10 (150 psi)
Codes for colors:
| D (MM) | D (INC) | CODE (white) | CODE (grey) | CODE (blue) | CODE (green) |
|---|---|---|---|---|---|
| 32 | 1” | VKFPB-032 | VKFPG-032 | VKFPM-032 | VKFPY-032 |
| 40 | 1 ¼” | VKFPB-040 | VKFPG-040 | VKFPM-040 | VKFPY-040 |
| 50 | 1 ½” | VKFPB-050 | VKFPG-050 | VKFPM-050 | VKFPY-050 |
| 63 | 2” | VKFPB-063 | VKFPG-063 | VKFPM-063 | VPPPY-063 |
| 75 | 2 ½” | VKFPB-075 | VKFPG-075 | VKFPM-075 | VKFPY-075 |
| 90 | 3” | VKFPB-090 | VKFPG-090 | VKFPM-090 | VKFPY-090 |
| 110 | 4” | VKFPB-110 | VKFPG-110 | VKFPM-110 | VKFPY-110 |
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
NOZBART® PPRC Single-Acting Pneumatic Actuated Ball Valves (With flange)
Seals: TEFLON
O-Rings: EPDM
D20 - D63 (½” - 2”) : PN 16 (240 psi)
D75 - D1 a10 (2½”-4”) : PN 10 (150 psi)
| D (MM) | D (INC) | CODE (white) | CODE (grey) | CODE (blue) | CODE (green) |
|---|---|---|---|---|---|
| 32 | 1” | VKFPB-033 | VKFPG-033 | VKFPM-033 | VKFPY-033 |
| 40 | 1 ¼” | VKFPB-041 | VKFPG-041 | VKFPM-041 | VKFPY-041 |
| 50 | 1 ½” | VKFPB-051 | VKFPG-051 | VKFPM-051 | VKFPY-051 |
| 63 | 2” | VKFPB-064 | VKFPG-064 | VKFPM-064 | VKFPY-064 |
| 75 | 2 ½” | VKFPB-076 | VKFPG-076 | VKFPM-076 | VKFPY-076 |
| 90 | 3” | VKFPB-091 | VKFPG-091 | VKFPM-091 | VKFPY-091 |
| 110 | 4” | VKFPB-111 | VKFPG-111 | VKFPM-111 | VKFPY-111 |
- Standard valves with EPDM seal can not be used for petroleum, petroleum derivates and organic oils. Special valves for all fluids are produced by changing the o-rings.
